MrStitch installs a
Original Upholstery kit to be just like back in the Day!
for Z/28 CAMARO OWNERS ONLY!
The
mrstitch Z/28 interior stood toe to toe with with to best interiors shown at
many car shows!
See mrstitch at the 2008 Palo Alto Concours D`Elegance at
Stanford
New!
MrStitch Z/28 OEM Upholstery Kit install

See the Car Shows this Z/28 has been to:
The Forty
Second Palo Alto Concours d`Elagance at Stanford University
Sunday, June 22,2008
See owner of 1969 Z/28 John Campbell at the Concours
The 41st annual Palo Alto Concours d'Elegance
www.paconcours.com/ SUNDAY,
JUNE 24, 2007
Car Crazy 12th Annual Car Show & BBQ 2007

|
See the project in
07 we are working on |
with help
from
Auto Metal Svc.com
is painting the car
with ppg materials
for John Campbell owner of the 1969 Camaro
Z /28
The owner of this mean green 1969 OEM Z /28 is doing a
complete restoration using the specs from vintage GM diagrams
and
using the Kits and Trim parts supplied by
StevesCamaroParts.com
|
HEADLINER - Prep
and install Work
when
we removed the old oem headliner material
we found , the Bows and the
old nasty pad needed to be replaced
customer purchased new bows to replace
the old rusty parts and old pad that Jon at Auto Metal Svc removed.

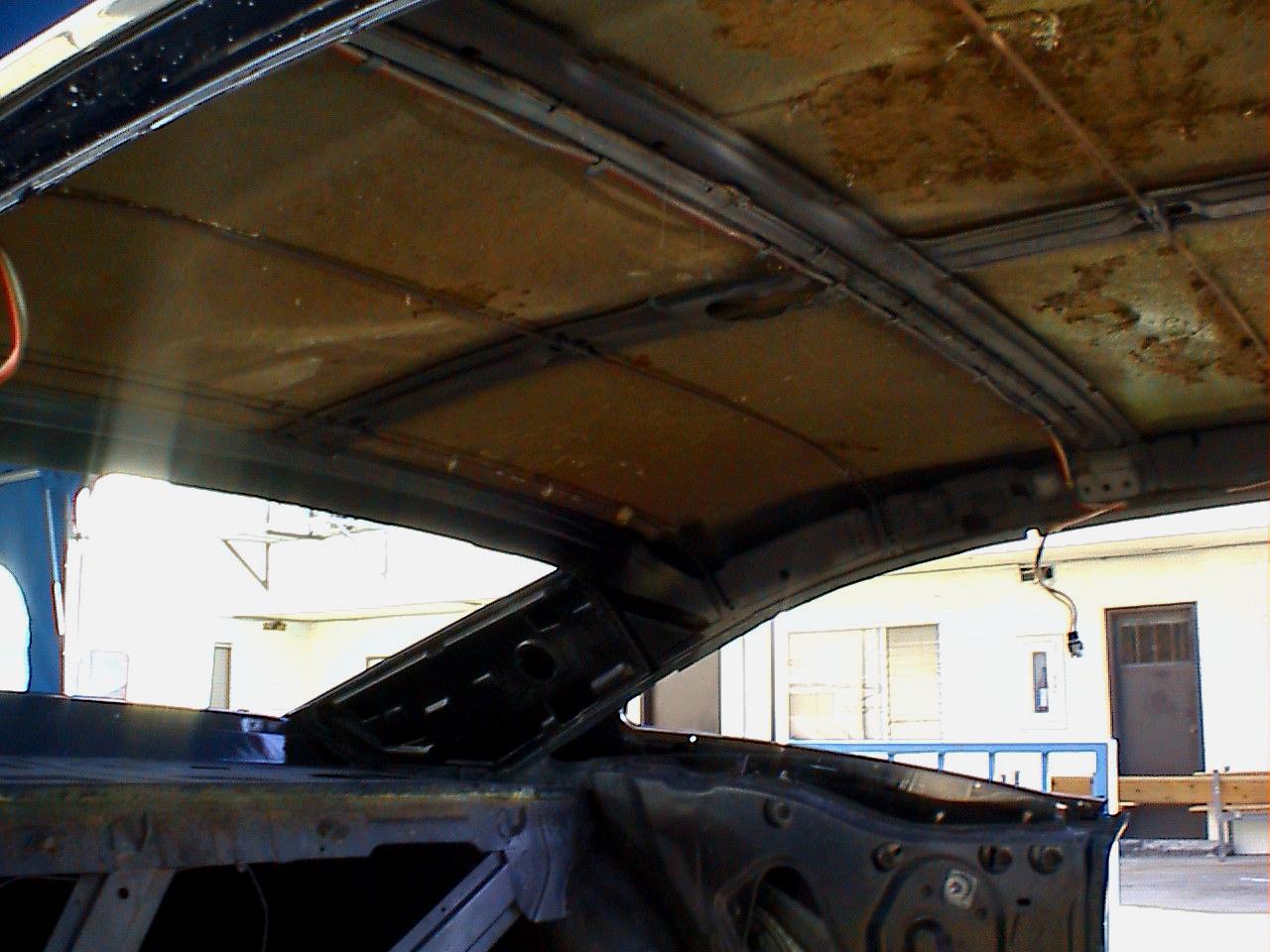

see the new metal surface after Jon at auto metal did the dirty work
removing the old roof pad
this took many hours cleaning the rust and spraying
the new sealer

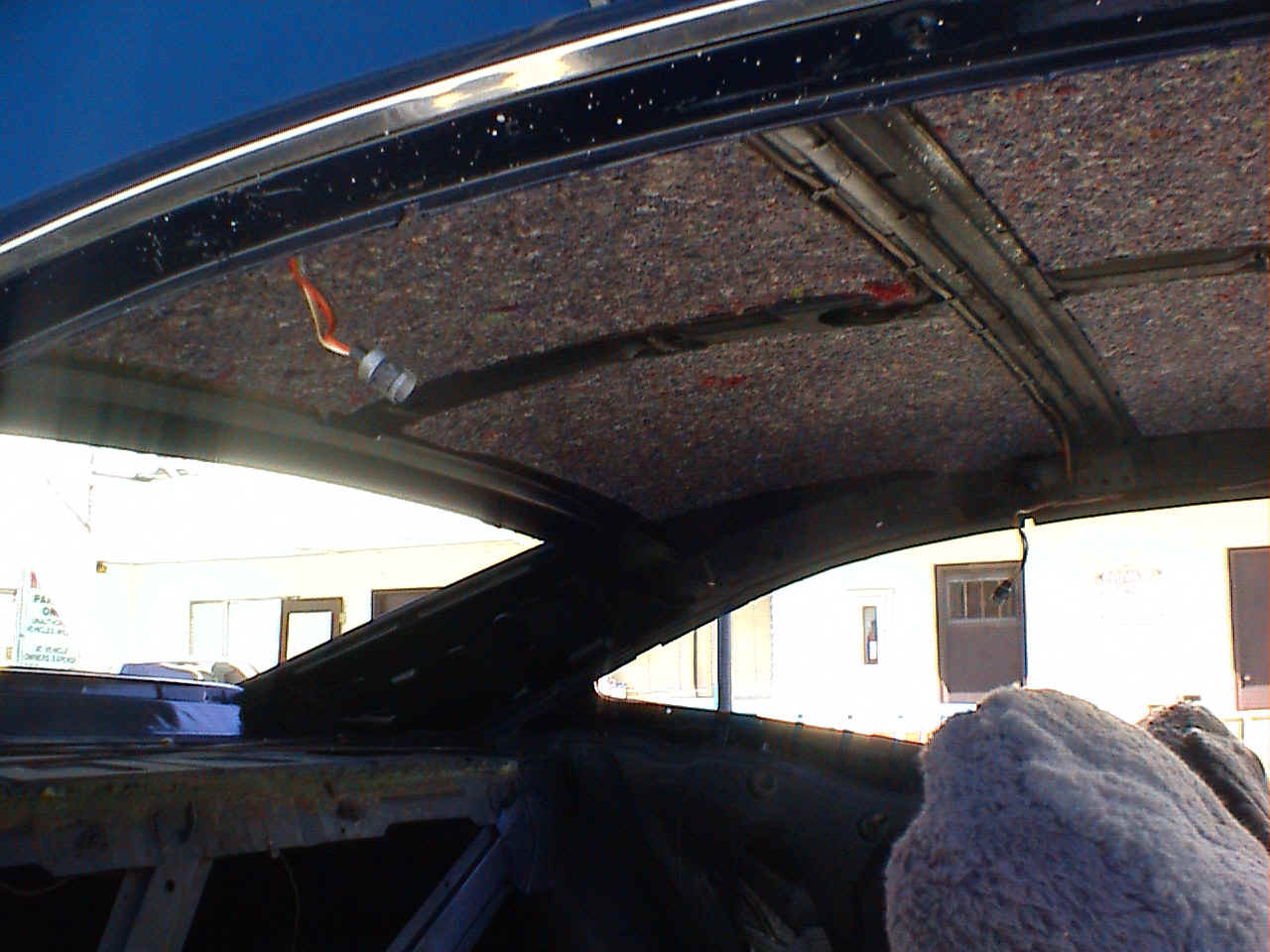

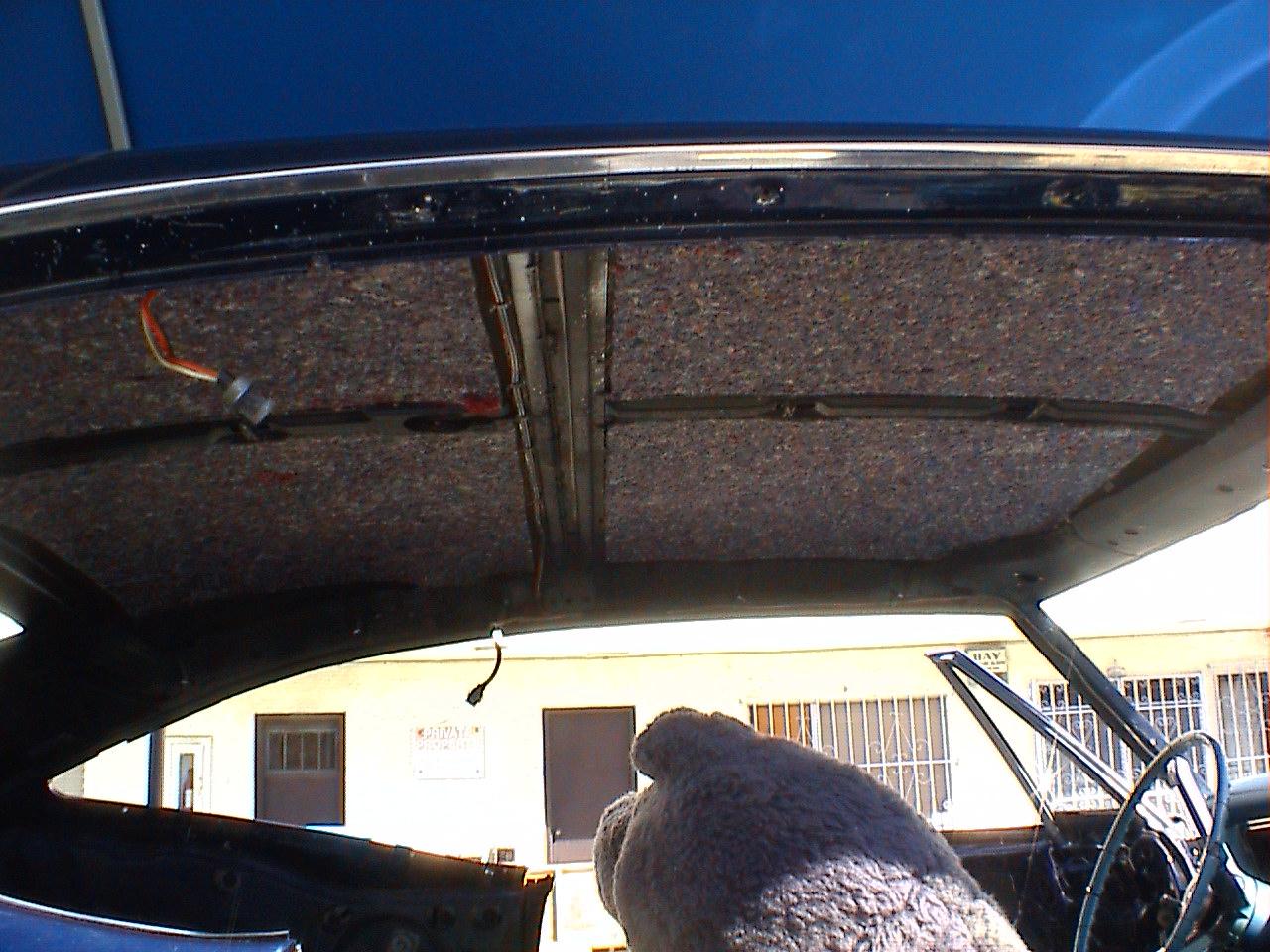

next new pad is glued to the roof sections and the quarters

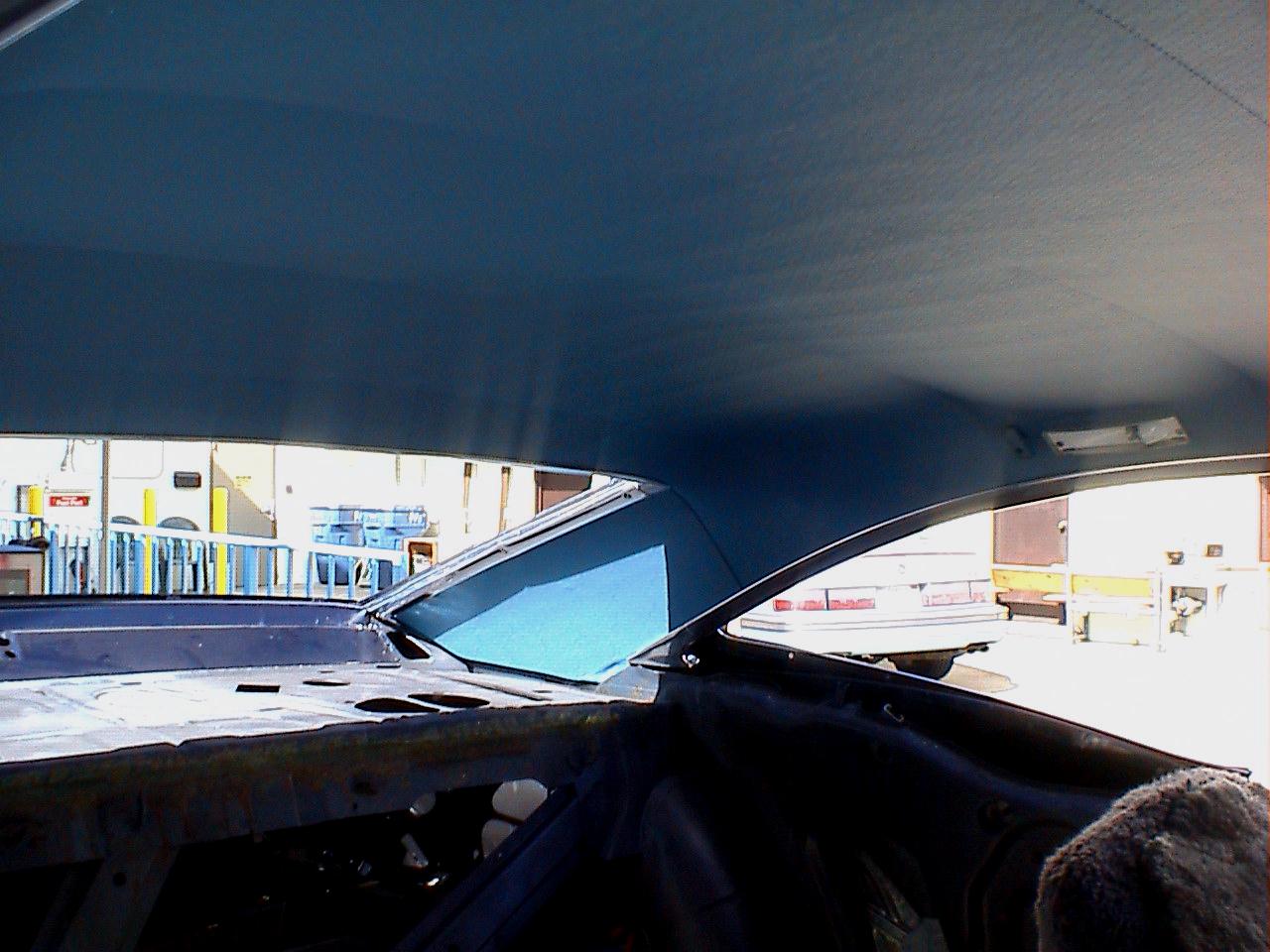

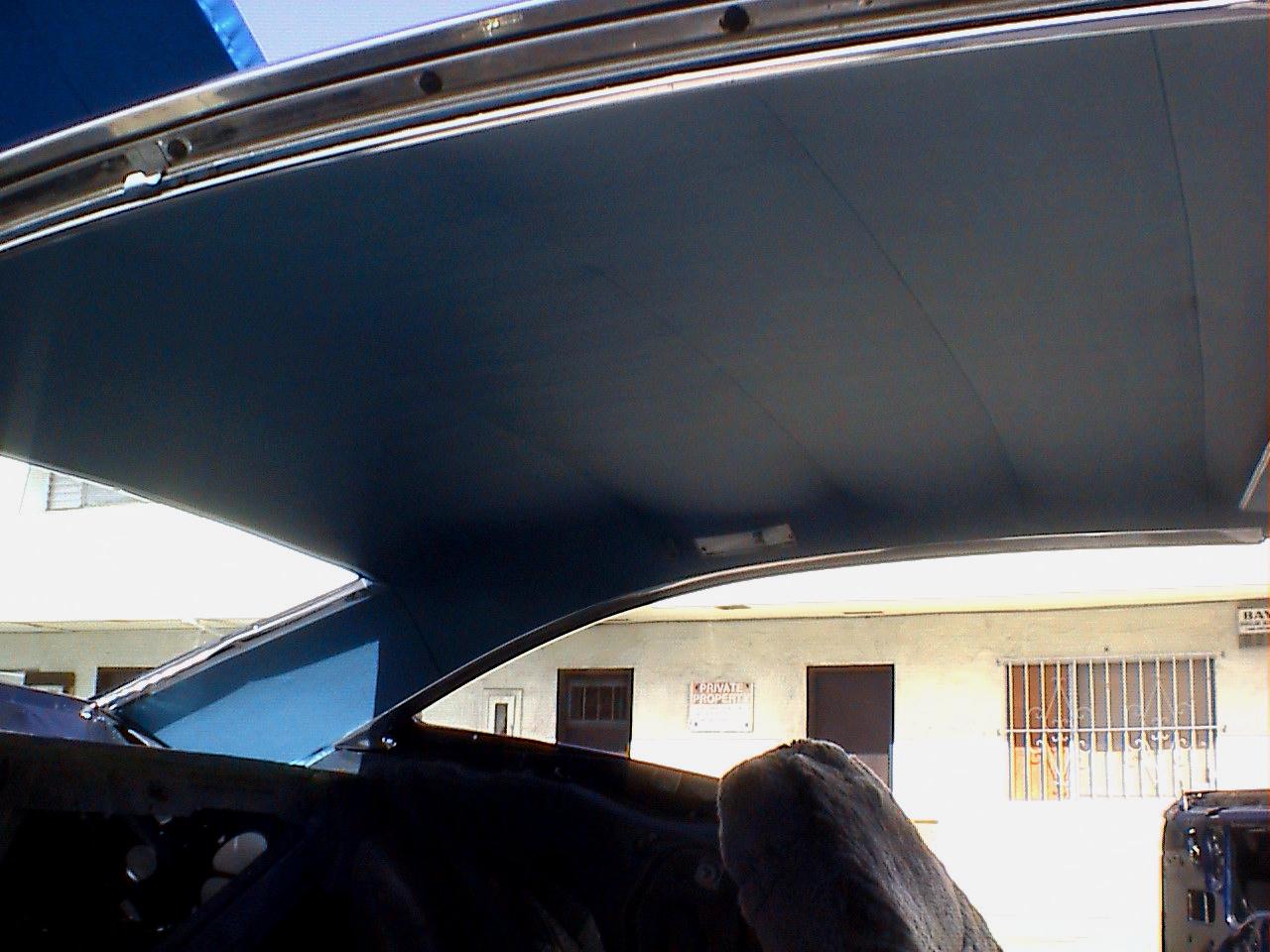

Finished Headiner
Parts are cleaned with acid and coated with Sem Rust
Shield

Front bucket seats look great! with the
PUI Covers and
American Cushion foam installed

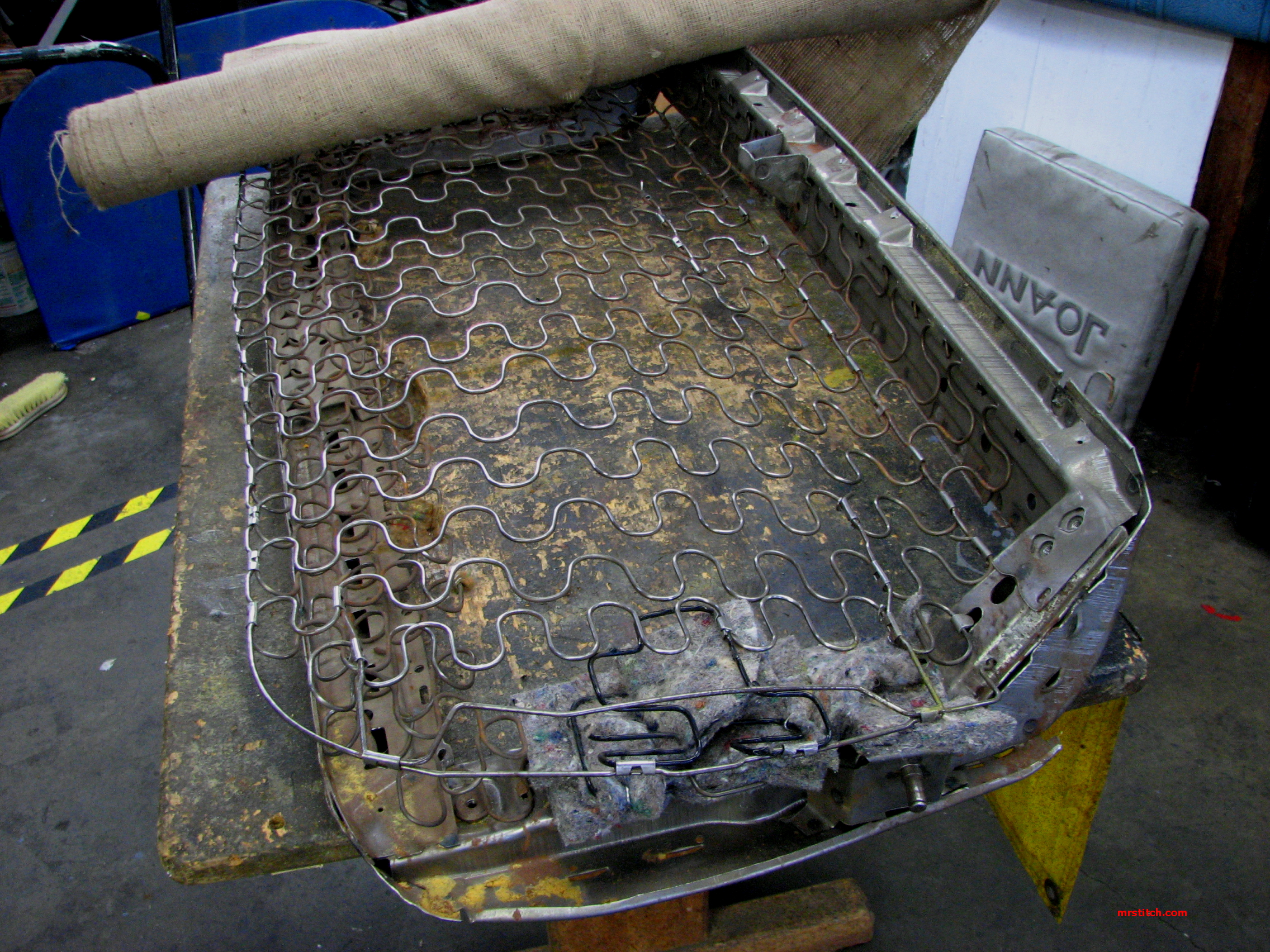

See the old rusty seat frames we restored start to finish

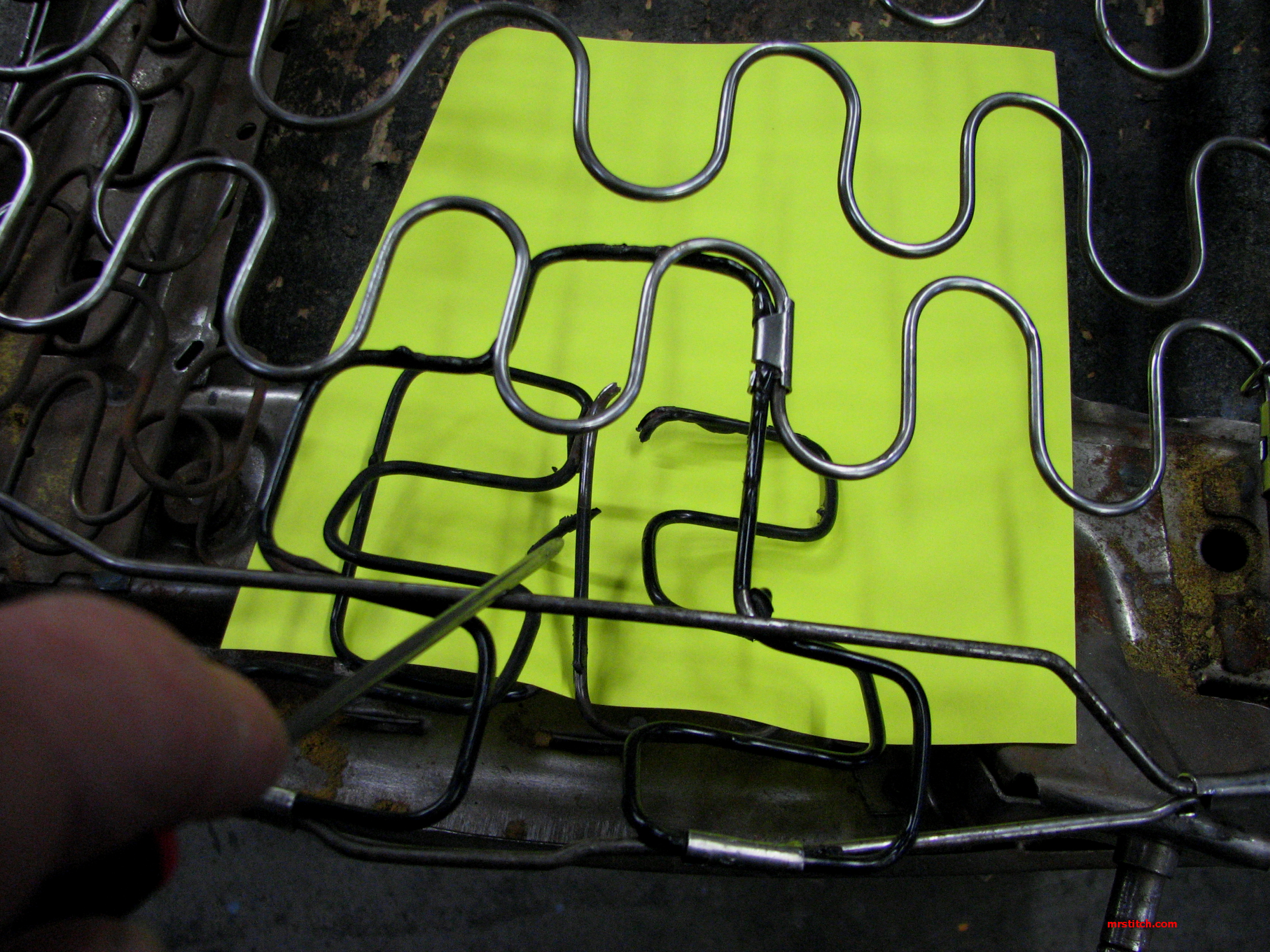

frames are washed in acid then the broken oem springs were mig welded by
Paul at Auto Metal

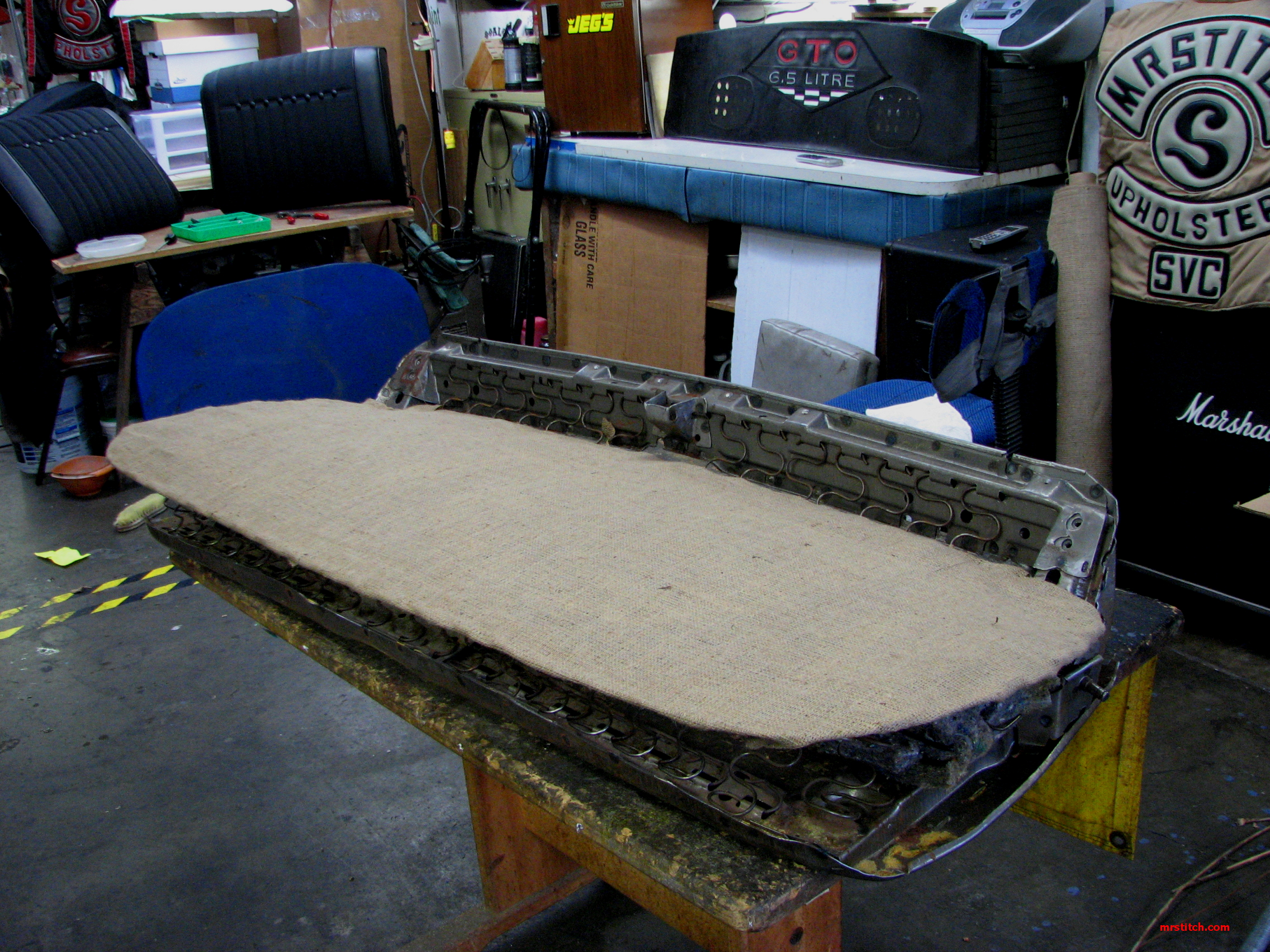

Sem Rust Shield is applied to frames and new burlap and
jute felt are then installed

Next we install the PUI seat kit and foam pad American Cushions,
from StevesCamaroParts.com
this assembly from Steves looks great right out of the box !

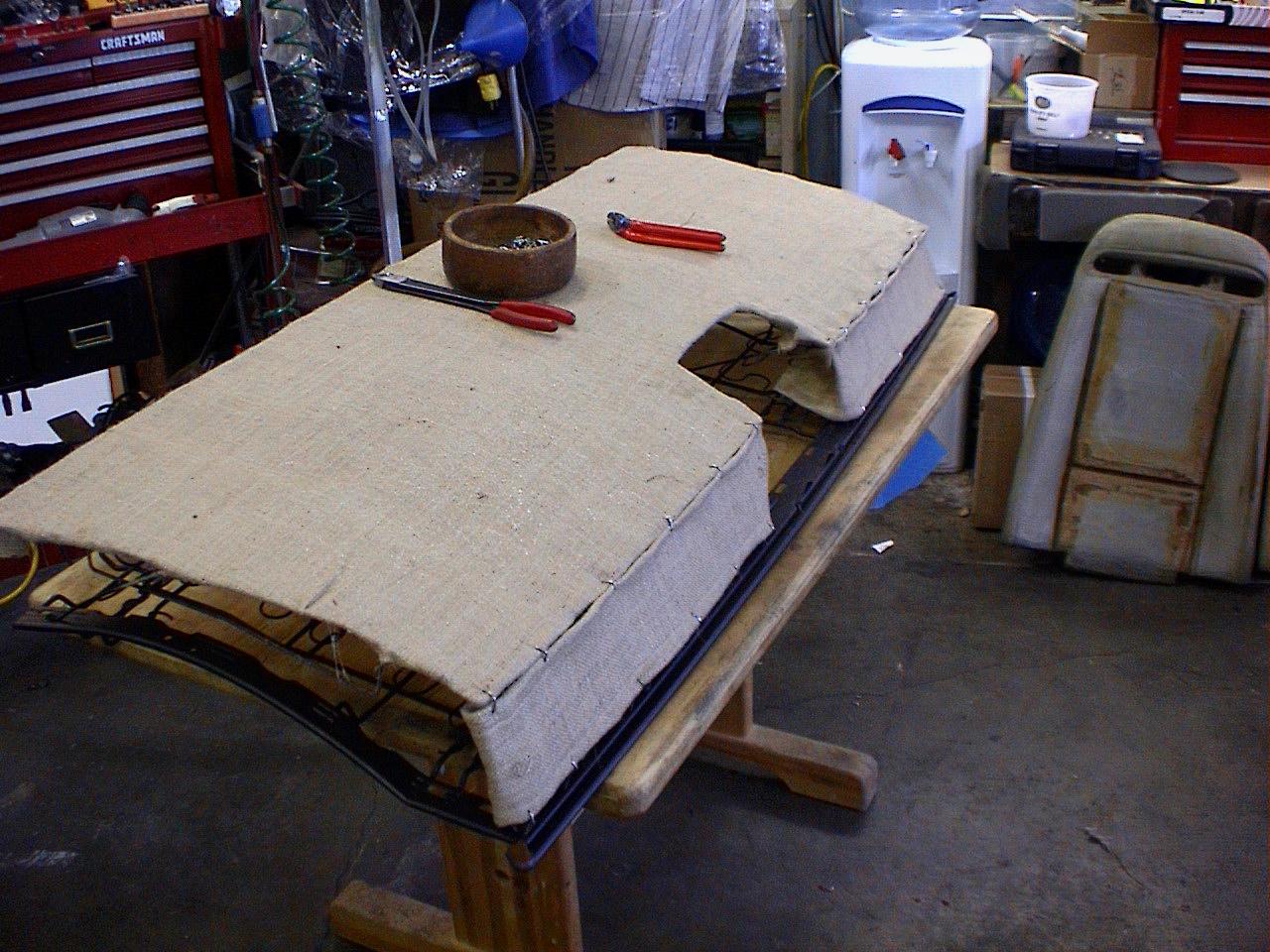

Rear seat back rest frame and pad restore pictures

WOW! we had to STOP!
the PUI seat
covers have come unsealed on the pleat sections, this looks very bad for the
customer that has a completion date

the front bucket seat kit installed looks nice big thick heat sealed
pleats like the original
the rear set is thin and pleats are not heat sealed
evenly and the covers are doing a popcorn process as each seam lifts
DOOR PANEL Aftermarket Kit for Z/28 Camaro
Install DIY Project Tips

See the pictures of the Camaro Standard Door Panels get the new materials
intergreated using the OEM Steel upper sections
See the finished drivers
standard Z/28 Doorpanel up the page
1st you have to use a
angled tool to bend the original staples OSBORNE TOOL #120 1/2
You have remove the original upper panel and reset the pressed
daggard holes using a angled set of pliers when doing by hand
this means you have to turn the tips up so the pre punched holes
will puncture the new panels giving a tight fit.
After you get
this removed you have to clean the upper metal panels with Solvent
to remove the glue (we use Kent Acrysol)
then use a light acid
that wiil remove the surface rust (Metal Prep)
then spray lite
coat of sealer like (Sem Rust Shield)
You can the align the upper
panel to the aftermarket assembly doorpanel, using the notches and
marks
Next apply glue to the doorpanel base board and the
metal , using a heavy weight hammer to stamp the metal to into the
panel, by hand doing strokes like a roman makes his sword, hard and
even to get a smooth feel of the new hand sealed upper section
Adding the foam pad that the aftermarket company did not include
with the kit
You have to hand cut the 1/4 inch foam to size
with angle the cut to edges
|
New Z/270 Silver Z28 Camar for Chris Patane

Headliner will be installed with pics showing as we remove the OEM
headliner and replce the seat covers!
Want your Z/28 interior restored so you can enter in a Concours or local Car
Show?
find your interior kit on the net
Also we do basic upholstery labor to install aftermarket kits, seat repairs for
the working car owner!
| |
| |
|
MrStitch ® Auto
Upholstery Svc
|
|
Open
Weekdays - 9am to 4pm
|
Saturdays
- 10am to1pm
|
|
Shop Location - 77 East
21st Ave. San Mateo CA. USA 94403 |
|
Call us at the Shop! 650
572-8818 |
Fax
6505728899@onlinefax.att.com |
|
Contact Us By E-MAIL |
mrstitch@mrstitch.com |
|
|
|
Call or Emai Call For your
Estimate or Appointment to help you!
|
See the new!
www.mrstitch.net website we are working on with new info for 2020
MrStitch installs a
Original Upholstery kit to be just like back in the Day!
for Z/28 CAMARO OWNERS ONLY!
The
mrstitch Z/28 interior stood toe to toe with with to best interiors shown at
many car shows!
See mrstitch at the 2008 Palo Alto Concours D`Elegance at
Stanford
New!
MrStitch Z/28 OEM Upholstery Kit install
See the Car Shows this Z/28 has been to:
The Forty
Second Palo Alto Concours d`Elagance at Stanford University
Sunday, June 22,2008
See owner of 1969 Z/28 John Campbell at the Concours
The 41st annual Palo Alto Concours d'Elegance
www.paconcours.com/ SUNDAY,
JUNE 24, 2007
Car Crazy 12th Annual Car Show & BBQ 2007
|
See the project in
07 we are working on |
with help
from
Auto Metal Svc.com
is painting the car
with ppg materials
for John Campbell owner of the 1969 Camaro
Z /28
The owner of this mean green 1969 OEM Z /28 is doing a
complete restoration using the specs from vintage GM diagrams
and
using the Kits and Trim parts supplied by
StevesCamaroParts.com
|
HEADLINER - Prep
and install Work
when
we removed the old oem headliner material
we found , the Bows and the
old nasty pad needed to be replaced
customer purchased new bows to replace
the old rusty parts and old pad that Jon at Auto Metal Svc removed.
see the new metal surface after Jon at auto metal did the dirty work
removing the old roof pad
this took many hours cleaning the rust and spraying
the new sealer
next new pad is glued to the roof sections and the quarters
Finished Headiner
Parts are cleaned with acid and coated with Sem Rust
Shield
Front bucket seats look great! with the
PUI Covers and
American Cushion foam installed
See the old rusty seat frames we restored start to finish
frames are washed in acid then the broken oem springs were mig welded by
Paul at Auto Metal
Sem Rust Shield is applied to frames and new burlap and
jute felt are then installed
Next we install the PUI seat kit and foam pad American Cushions,
from StevesCamaroParts.com
this assembly from Steves looks great right out of the box !
Rear seat back rest frame and pad restore pictures
WOW! we had to STOP!
the PUI seat
covers have come unsealed on the pleat sections, this looks very bad for the
customer that has a completion date
the front bucket seat kit installed looks nice big thick heat sealed
pleats like the original
the rear set is thin and pleats are not heat sealed
evenly and the covers are doing a popcorn process as each seam lifts
DOOR PANEL Aftermarket Kit for Z/28 Camaro
Install DIY Project Tips
See the pictures of the Camaro Standard Door Panels get the new materials
intergreated using the OEM Steel upper sections
See the finished drivers
standard Z/28 Doorpanel up the page
1st you have to use a
angled tool to bend the original staples OSBORNE TOOL #120 1/2
You have remove the original upper panel and reset the pressed
daggard holes using a angled set of pliers when doing by hand
this means you have to turn the tips up so the pre punched holes
will puncture the new panels giving a tight fit.
After you get
this removed you have to clean the upper metal panels with Solvent
to remove the glue (we use Kent Acrysol)
then use a light acid
that wiil remove the surface rust (Metal Prep)
then spray lite
coat of sealer like (Sem Rust Shield)
You can the align the upper
panel to the aftermarket assembly doorpanel, using the notches and
marks
Next apply glue to the doorpanel base board and the
metal , using a heavy weight hammer to stamp the metal to into the
panel, by hand doing strokes like a roman makes his sword, hard and
even to get a smooth feel of the new hand sealed upper section
Adding the foam pad that the aftermarket company did not include
with the kit
You have to hand cut the 1/4 inch foam to size
with angle the cut to edges
|
New Z/270 Silver Z28 Camar for Chris Patane
Headliner will be installed with pics showing as we remove the OEM
headliner and replce the seat covers!
Want your Z/28 interior restored so you can enter in a Concours or local Car
Show?
find your interior kit on the net
Also we do basic upholstery labor to install aftermarket kits, seat repairs for
the working car owner!
| |
| |
|
MrStitch ® Auto
Upholstery Svc
|
|
Open
Weekdays - 9am to 4pm
|
Saturdays
- 10am to1pm
|
|
Shop Location - 77 East
21st Ave. San Mateo CA. USA 94403 |
|
Call us at the Shop! 650
572-8818 |
Fax
6505728899@onlinefax.att.com |
|
Contact Us By E-MAIL |
mrstitch@mrstitch.com |
|
|
|
Call or Emai Call For your
Estimate or Appointment to help you!
|
See the new!
www.mrstitch.net website we are working on with new info for 2020
| |
| |
|
MrStitch ® Auto
Upholstery Svc
|
|
Open
Weekdays - 9am to 4pm
|
Saturdays
- 10am to1pm
|
|
Shop Location - 77 East
21st Ave. San Mateo CA. USA 94403 |
|
Call us at the Shop! 650
572-8818 |
Fax
6505728899@onlinefax.att.com |
|
Contact Us By E-MAIL |
mrstitch@mrstitch.com |
|
|
|
Call or Emai Call For your
Estimate or Appointment to help you!
|
See the new!
www.mrstitch.net website we are working on with new info for 2020
| |
| |
|
MrStitch ® Auto
Upholstery Svc |
|
Open
Weekdays - 9am to 4pm |
Saturdays
- 10am to1pm |
|
Shop Location - 77 East
21st Ave. San Mateo CA. USA 94403 |
|
Call us at the Shop! 650
572-8818 |
Fax
6505728899@onlinefax.att.com |
|
Contact Us By E-MAIL |
mrstitch@mrstitch.com |
|
|
|
Call or Emai Call For your
Estimate or Appointment to help you! |
See the new! www.mrstitch.net website we
are working on with new info for 2020
| |
| |
|
MrStitch ® Auto
Upholstery Svc |
|
Open
Weekdays - 9am to 4pm |
Saturdays
- 10am to1pm |
|
Shop Location - 77 East
21st Ave. San Mateo CA. USA 94403 |
|
Call us at the Shop! 650
572-8818 |
Call for our Cell # for Text and pictures |
|
Contact Us By E-MAIL |
mrstitch@mrstitch.com |
|
|
|
Call or Email Call For
your Estimate or Appointment to help you! |
See the new!
www.mrstitch.net
website we are working on with new info for 2024
|
| |
|
MrStitch ® Auto
Upholstery Svc |
|
Open
Weekdays - 9am to 4pm |
Saturdays
- 10am to1pm |
|
Shop Location - 77 East
21st Ave. San Mateo CA. USA 94403 |
|
Call us at the Shop! 650
572-8818 |
Fax
650 572-8818 |
|
Contact Us By E-MAIL |
mrstitch@mrstitch.com |
|
|
|
Call or Emai Call For your
Estimate or Appointment to help you! |
See the new!
www.mrstitch.net
website we are working on with new info for 2022
| |
|
| |
|
MrStitch ® Auto
Upholstery Svc
|
|
Open
Weekdays - 9am to 4pm
|
Saturdays
- 10am to1pm
|
|
Shop Location - 77 East
21st Ave. San Mateo CA. USA 94403 |
|
Call us at the Shop! 650
572-8818 |
Fax 650
572-8818 |
|
Contact Us By E-MAIL |
mrstitch@mrstitch.com |
|
|
|
Call or Emai Call For your
Estimate or Appointment to help you!
|
See the new!
www.mrstitch.net
website we are working on with new info for 2021
| |
| |
|
MrStitch ® Auto
Upholstery Svc
|
|
Open
Weekdays - 9am to 4pm
|
Saturdays
- 10am to1pm
|
|
Shop Location - 77 East
21st Ave. San Mateo CA. USA 94403 |
|
Call us at the Shop! 650
572-8818 |
Fax 650
572-8818 |
|
Contact Us By E-MAIL |
mrstitch@mrstitch.com |
|
|
|
Call or Emai Call For your
Estimate or Appointment to help you!
|
See the new!
www.mrstitch.net
website we are working on with new info for 2021
| |
| |
|
MrStitch ® Auto
Upholstery Svc
|
|
Open
Weekdays - 9am to 4pm
|
Saturdays
- 10am to1pm
|
|
Shop Location - 77 East
21st Ave. San Mateo CA. USA 94403 |
|
Call us at the Shop! 650
572-8818 |
Fax 650
572-8818 |
|
Contact Us By E-MAIL |
mrstitch@mrstitch.com |
|
|
|
Call or Emai Call For your
Estimate or Appointment to help you!
|
See the new!
www.mrstitch.net
website we are working on with new info for 2021
| |
| |
|
MrStitch ® Auto
Upholstery Svc |
|
Open
Weekdays - 9am to 4pm |
Saturdays
- 10am to1pm |
|
Shop Location - 77 East
21st Ave. San Mateo CA. USA 94403 |
|
Call us at the Shop! 650
572-8818 |
Fax
6505728899@onlinefax.att.com |
|
Contact Us By E-MAIL |
mrstitch@mrstitch.com |
|
|
|
Call or Emai Call For your
Estimate or Appointment to help you! |
See the new!
www.mrstitch.net website we are working on
with new info for 2021
| |
| |
|
MrStitch ® Auto
Upholstery Svc
|
|
Open
Weekdays - 9am to 4pm
|
Saturdays
- 10am to1pm
|
|
Shop Location - 77 East
21st Ave. San Mateo CA. USA 94403 |
|
Call us at the Shop! 650
572-8818 |
Fax
6505728899@onlinefax.att.com |
|
Contact Us By E-MAIL |
mrstitch@mrstitch.com |
|
|
|
Call or Emai Call For your
Estimate or Appointment to help you!
|
See the new!
www.mrstitch.net website we are working on with new info for 2020
MrStitch installs a
Original Upholstery kit to be just like back in the Day!
for Z/28 CAMARO OWNERS ONLY!
The
mrstitch Z/28 interior stood toe to toe with with to best interiors shown at
many car shows!
See mrstitch at the 2008 Palo Alto Concours D`Elegance at
Stanford
New!
MrStitch Z/28 OEM Upholstery Kit install
See the Car Shows this Z/28 has been to:
The Forty
Second Palo Alto Concours d`Elagance at Stanford University
Sunday, June 22,2008
See owner of 1969 Z/28 John Campbell at the Concours
The 41st annual Palo Alto Concours d'Elegance
www.paconcours.com/ SUNDAY,
JUNE 24, 2007
Car Crazy 12th Annual Car Show & BBQ 2007
|
See the project in
07 we are working on |
with help
from
Auto Metal Svc.com
is painting the car
with ppg materials
for John Campbell owner of the 1969 Camaro
Z /28
The owner of this mean green 1969 OEM Z /28 is doing a
complete restoration using the specs from vintage GM diagrams
and
using the Kits and Trim parts supplied by
StevesCamaroParts.com
|
HEADLINER - Prep
and install Work
when
we removed the old oem headliner material
we found , the Bows and the
old nasty pad needed to be replaced
customer purchased new bows to replace
the old rusty parts and old pad that Jon at Auto Metal Svc removed.
see the new metal surface after Jon at auto metal did the dirty work
removing the old roof pad
this took many hours cleaning the rust and spraying
the new sealer
next new pad is glued to the roof sections and the quarters
Finished Headiner
Parts are cleaned with acid and coated with Sem Rust
Shield
Front bucket seats look great! with the
PUI Covers and
American Cushion foam installed
See the old rusty seat frames we restored start to finish
frames are washed in acid then the broken oem springs were mig welded by
Paul at Auto Metal
Sem Rust Shield is applied to frames and new burlap and
jute felt are then installed
Next we install the PUI seat kit and foam pad American Cushions,
from StevesCamaroParts.com
this assembly from Steves looks great right out of the box !
Rear seat back rest frame and pad restore pictures
WOW! we had to STOP!
the PUI seat
covers have come unsealed on the pleat sections, this looks very bad for the
customer that has a completion date
the front bucket seat kit installed looks nice big thick heat sealed
pleats like the original
the rear set is thin and pleats are not heat sealed
evenly and the covers are doing a popcorn process as each seam lifts
DOOR PANEL Aftermarket Kit for Z/28 Camaro
Install DIY Project Tips
See the pictures of the Camaro Standard Door Panels get the new materials
intergreated using the OEM Steel upper sections
See the finished drivers
standard Z/28 Doorpanel up the page
1st you have to use a
angled tool to bend the original staples OSBORNE TOOL #120 1/2
You have remove the original upper panel and reset the pressed
daggard holes using a angled set of pliers when doing by hand
this means you have to turn the tips up so the pre punched holes
will puncture the new panels giving a tight fit.
After you get
this removed you have to clean the upper metal panels with Solvent
to remove the glue (we use Kent Acrysol)
then use a light acid
that wiil remove the surface rust (Metal Prep)
then spray lite
coat of sealer like (Sem Rust Shield)
You can the align the upper
panel to the aftermarket assembly doorpanel, using the notches and
marks
Next apply glue to the doorpanel base board and the
metal , using a heavy weight hammer to stamp the metal to into the
panel, by hand doing strokes like a roman makes his sword, hard and
even to get a smooth feel of the new hand sealed upper section
Adding the foam pad that the aftermarket company did not include
with the kit
You have to hand cut the 1/4 inch foam to size
with angle the cut to edges
|
New Z/270 Silver Z28 Camar for Chris Patane
Headliner will be installed with pics showing as we remove the OEM
headliner and replce the seat covers!
Want your Z/28 interior restored so you can enter in a Concours or local Car
Show?
find your interior kit on the net
Also we do basic upholstery labor to install aftermarket kits, seat repairs for
the working car owner!
| |
| |
|
MrStitch ® Auto
Upholstery Svc
|
|
Open
Weekdays - 9am to 4pm
|
Saturdays
- 10am to1pm
|
|
Shop Location - 77 East
21st Ave. San Mateo CA. USA 94403 |
|
Call us at the Shop! 650
572-8818 |
Fax
6505728899@onlinefax.att.com |
|
Contact Us By E-MAIL |
mrstitch@mrstitch.com |
|
|
|
Call or Emai Call For your
Estimate or Appointment to help you!
|
See the new!
www.mrstitch.net website we are working on with new info for 2020
MrStitch installs a
Original Upholstery kit to be just like back in the Day!
for Z/28 CAMARO OWNERS ONLY!
The
mrstitch Z/28 interior stood toe to toe with with to best interiors shown at
many car shows!
See mrstitch at the 2008 Palo Alto Concours D`Elegance at
Stanford
New!
MrStitch Z/28 OEM Upholstery Kit install
See the Car Shows this Z/28 has been to:
The Forty
Second Palo Alto Concours d`Elagance at Stanford University
Sunday, June 22,2008
See owner of 1969 Z/28 John Campbell at the Concours
The 41st annual Palo Alto Concours d'Elegance
www.paconcours.com/ SUNDAY,
JUNE 24, 2007
Car Crazy 12th Annual Car Show & BBQ 2007
|
See the project in
07 we are working on |
with help
from
Auto Metal Svc.com
is painting the car
with ppg materials
for John Campbell owner of the 1969 Camaro
Z /28
The owner of this mean green 1969 OEM Z /28 is doing a
complete restoration using the specs from vintage GM diagrams
and
using the Kits and Trim parts supplied by
StevesCamaroParts.com
|
HEADLINER - Prep
and install Work
when
we removed the old oem headliner material
we found , the Bows and the
old nasty pad needed to be replaced
customer purchased new bows to replace
the old rusty parts and old pad that Jon at Auto Metal Svc removed.
see the new metal surface after Jon at auto metal did the dirty work
removing the old roof pad
this took many hours cleaning the rust and spraying
the new sealer
next new pad is glued to the roof sections and the quarters
Finished Headiner
Parts are cleaned with acid and coated with Sem Rust
Shield
Front bucket seats look great! with the
PUI Covers and
American Cushion foam installed
See the old rusty seat frames we restored start to finish
frames are washed in acid then the broken oem springs were mig welded by
Paul at Auto Metal
Sem Rust Shield is applied to frames and new burlap and
jute felt are then installed
Next we install the PUI seat kit and foam pad American Cushions,
from StevesCamaroParts.com
this assembly from Steves looks great right out of the box !
Rear seat back rest frame and pad restore pictures
WOW! we had to STOP!
the PUI seat
covers have come unsealed on the pleat sections, this looks very bad for the
customer that has a completion date
the front bucket seat kit installed looks nice big thick heat sealed
pleats like the original
the rear set is thin and pleats are not heat sealed
evenly and the covers are doing a popcorn process as each seam lifts
DOOR PANEL Aftermarket Kit for Z/28 Camaro
Install DIY Project Tips
See the pictures of the Camaro Standard Door Panels get the new materials
intergreated using the OEM Steel upper sections
See the finished drivers
standard Z/28 Doorpanel up the page
1st you have to use a
angled tool to bend the original staples OSBORNE TOOL #120 1/2
You have remove the original upper panel and reset the pressed
daggard holes using a angled set of pliers when doing by hand
this means you have to turn the tips up so the pre punched holes
will puncture the new panels giving a tight fit.
After you get
this removed you have to clean the upper metal panels with Solvent
to remove the glue (we use Kent Acrysol)
then use a light acid
that wiil remove the surface rust (Metal Prep)
then spray lite
coat of sealer like (Sem Rust Shield)
You can the align the upper
panel to the aftermarket assembly doorpanel, using the notches and
marks
Next apply glue to the doorpanel base board and the
metal , using a heavy weight hammer to stamp the metal to into the
panel, by hand doing strokes like a roman makes his sword, hard and
even to get a smooth feel of the new hand sealed upper section
Adding the foam pad that the aftermarket company did not include
with the kit
You have to hand cut the 1/4 inch foam to size
with angle the cut to edges
|
New Z/270 Silver Z28 Camar for Chris Patane
Headliner will be installed with pics showing as we remove the OEM
headliner and replce the seat covers!
Want your Z/28 interior restored so you can enter in a Concours or local Car
Show?
find your interior kit on the net
Also we do basic upholstery labor to install aftermarket kits, seat repairs for
the working car owner!
| |
| |
|
MrStitch ® Auto
Upholstery Svc
|
|
Open
Weekdays - 9am to 4pm
|
Saturdays
- 10am to1pm
|
|
Shop Location - 77 East
21st Ave. San Mateo CA. USA 94403 |
|
Call us at the Shop! 650
572-8818 |
Fax
6505728899@onlinefax.att.com |
|
Contact Us By E-MAIL |
mrstitch@mrstitch.com |
|
|
|
Call or Emai Call For your
Estimate or Appointment to help you!
|
See the new!
www.mrstitch.net website we are working on with new info for 2020
| |
| |
|
MrStitch ® Auto
Upholstery Svc
|
|
Open
Weekdays - 9am to 4pm
|
Saturdays
- 10am to1pm
|
|
Shop Location - 77 East
21st Ave. San Mateo CA. USA 94403 |
|
Call us at the Shop! 650
572-8818 |
Fax
6505728899@onlinefax.att.com |
|
Contact Us By E-MAIL |
mrstitch@mrstitch.com |
|
|
|
Call or Emai Call For your
Estimate or Appointment to help you!
|
See the new!
www.mrstitch.net website we are working on with new info for 2020
| |
| |
|
MrStitch ® Auto
Upholstery Svc |
|
Open
Weekdays - 9am to 4pm |
Saturdays
- 10am to1pm |
|
Shop Location - 77 East
21st Ave. San Mateo CA. USA 94403 |
|
Call us at the Shop! 650
572-8818 |
Fax
6505728899@onlinefax.att.com |
|
Contact Us By E-MAIL |
mrstitch@mrstitch.com |
|
|
|
Call or Emai Call For your
Estimate or Appointment to help you! |
See the new! www.mrstitch.net website we
are working on with new info for 2020
| |
| |
MrStitch® is
protected by the USA Patent and Trademark Office ! Any use of mrstitch.com
text and images must be approved by MrStitch!
MrStitch text and images on the web created and shown is a registered
Service and Trademark.
Copyright©1986-2020 MR.STITCH All rights reserved.
|
MrStitch ® Auto
Upholstery Svc |
|
Open
Weekdays - 9am to 4pm |
Saturdays
- 10am to1pm |
|
Shop Location - 77 East
21st Ave. San Mateo CA. USA 94403 |
|
Call us at the Shop! 650
572-8818 |
Call for our Cell # for Text and pictures |
|
Contact Us By E-MAIL |
mrstitch@mrstitch.com |
|
|
|
Call or Email Call For
your Estimate or Appointment to help you! |
See the new!
www.mrstitch.net
website we are working on with new info for 2024
|
| |
|
MrStitch ® Auto
Upholstery Svc |
|
Open
Weekdays - 9am to 4pm |
Saturdays
- 10am to1pm |
|
Shop Location - 77 East
21st Ave. San Mateo CA. USA 94403 |
|
Call us at the Shop! 650
572-8818 |
Fax
650 572-8818 |
|
Contact Us By E-MAIL |
mrstitch@mrstitch.com |
|
|
|
Call or Emai Call For your
Estimate or Appointment to help you! |
See the new!
www.mrstitch.net
website we are working on with new info for 2022
| |
|
| |
|
MrStitch ® Auto
Upholstery Svc
|
|
Open
Weekdays - 9am to 4pm
|
Saturdays
- 10am to1pm
|
|
Shop Location - 77 East
21st Ave. San Mateo CA. USA 94403 |
|
Call us at the Shop! 650
572-8818 |
Fax 650
572-8818 |
|
Contact Us By E-MAIL |
mrstitch@mrstitch.com |
|
|
|
Call or Emai Call For your
Estimate or Appointment to help you!
|
See the new!
www.mrstitch.net
website we are working on with new info for 2021
| |
| |
|
MrStitch ® Auto
Upholstery Svc
|
|
Open
Weekdays - 9am to 4pm
|
Saturdays
- 10am to1pm
|
|
Shop Location - 77 East
21st Ave. San Mateo CA. USA 94403 |
|
Call us at the Shop! 650
572-8818 |
Fax 650
572-8818 |
|
Contact Us By E-MAIL |
mrstitch@mrstitch.com |
|
|
|
Call or Emai Call For your
Estimate or Appointment to help you!
|
See the new!
www.mrstitch.net
website we are working on with new info for 2021
| |
| |
|
MrStitch ® Auto
Upholstery Svc
|
|
Open
Weekdays - 9am to 4pm
|
Saturdays
- 10am to1pm
|
|
Shop Location - 77 East
21st Ave. San Mateo CA. USA 94403 |
|
Call us at the Shop! 650
572-8818 |
Fax 650
572-8818 |
|
Contact Us By E-MAIL |
mrstitch@mrstitch.com |
|
|
|
Call or Emai Call For your
Estimate or Appointment to help you!
|
See the new!
www.mrstitch.net
website we are working on with new info for 2021
| |
| |
|
MrStitch ® Auto
Upholstery Svc |
|
Open
Weekdays - 9am to 4pm |
Saturdays
- 10am to1pm |
|
Shop Location - 77 East
21st Ave. San Mateo CA. USA 94403 |
|
Call us at the Shop! 650
572-8818 |
Fax
6505728899@onlinefax.att.com |
|
Contact Us By E-MAIL |
mrstitch@mrstitch.com |
|
|
|
Call or Emai Call For your
Estimate or Appointment to help you! |
See the new!
www.mrstitch.net website we are working on
with new info for 2021
| |
| |
|
MrStitch ® Auto
Upholstery Svc
|
|
Open
Weekdays - 9am to 4pm
|
Saturdays
- 10am to1pm
|
|
Shop Location - 77 East
21st Ave. San Mateo CA. USA 94403 |
|
Call us at the Shop! 650
572-8818 |
Fax
6505728899@onlinefax.att.com |
|
Contact Us By E-MAIL |
mrstitch@mrstitch.com |
|
|
|
Call or Emai Call For your
Estimate or Appointment to help you!
|
See the new!
www.mrstitch.net website we are working on with new info for 2020
MrStitch installs a
Original Upholstery kit to be just like back in the Day!
for Z/28 CAMARO OWNERS ONLY!
The
mrstitch Z/28 interior stood toe to toe with with to best interiors shown at
many car shows!
See mrstitch at the 2008 Palo Alto Concours D`Elegance at
Stanford
New!
MrStitch Z/28 OEM Upholstery Kit install
See the Car Shows this Z/28 has been to:
The Forty
Second Palo Alto Concours d`Elagance at Stanford University
Sunday, June 22,2008
See owner of 1969 Z/28 John Campbell at the Concours
The 41st annual Palo Alto Concours d'Elegance
www.paconcours.com/ SUNDAY,
JUNE 24, 2007
Car Crazy 12th Annual Car Show & BBQ 2007
|
See the project in
07 we are working on |
with help
from
Auto Metal Svc.com
is painting the car
with ppg materials
for John Campbell owner of the 1969 Camaro
Z /28
The owner of this mean green 1969 OEM Z /28 is doing a
complete restoration using the specs from vintage GM diagrams
and
using the Kits and Trim parts supplied by
StevesCamaroParts.com
|
HEADLINER - Prep
and install Work
when
we removed the old oem headliner material
we found , the Bows and the
old nasty pad needed to be replaced
customer purchased new bows to replace
the old rusty parts and old pad that Jon at Auto Metal Svc removed.
see the new metal surface after Jon at auto metal did the dirty work
removing the old roof pad
this took many hours cleaning the rust and spraying
the new sealer
next new pad is glued to the roof sections and the quarters
Finished Headiner
Parts are cleaned with acid and coated with Sem Rust
Shield
Front bucket seats look great! with the
PUI Covers and
American Cushion foam installed
See the old rusty seat frames we restored start to finish
frames are washed in acid then the broken oem springs were mig welded by
Paul at Auto Metal
Sem Rust Shield is applied to frames and new burlap and
jute felt are then installed
Next we install the PUI seat kit and foam pad American Cushions,
from StevesCamaroParts.com
this assembly from Steves looks great right out of the box !

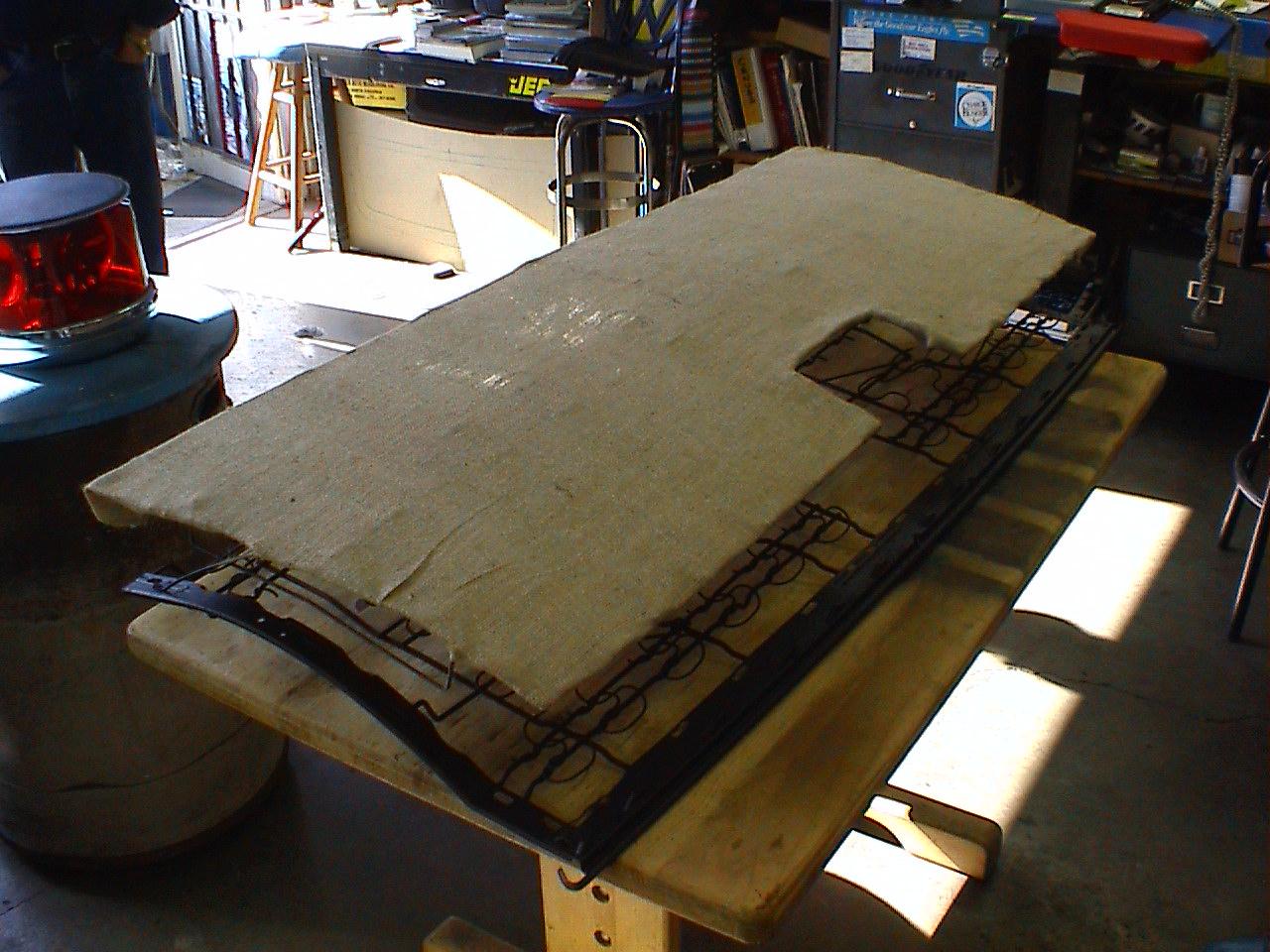

Rear seat back rest frame and pad restore pictures
WOW! we had to STOP!
the PUI seat
covers have come unsealed on the pleat sections, this looks very bad for the
customer that has a completion date
the front bucket seat kit installed looks nice big thick heat sealed
pleats like the original
the rear set is thin and pleats are not heat sealed
evenly and the covers are doing a popcorn process as each seam lifts
DOOR PANEL Aftermarket Kit for Z/28 Camaro
Install DIY Project Tips
See the pictures of the Camaro Standard Door Panels get the new materials
intergreated using the OEM Steel upper sections
See the finished drivers
standard Z/28 Doorpanel up the page
1st you have to use a
angled tool to bend the original staples OSBORNE TOOL #120 1/2
You have remove the original upper panel and reset the pressed
daggard holes using a angled set of pliers when doing by hand
this means you have to turn the tips up so the pre punched holes
will puncture the new panels giving a tight fit.
After you get
this removed you have to clean the upper metal panels with Solvent
to remove the glue (we use Kent Acrysol)
then use a light acid
that wiil remove the surface rust (Metal Prep)
then spray lite
coat of sealer like (Sem Rust Shield)
You can the align the upper
panel to the aftermarket assembly doorpanel, using the notches and
marks
Next apply glue to the doorpanel base board and the
metal , using a heavy weight hammer to stamp the metal to into the
panel, by hand doing strokes like a roman makes his sword, hard and
even to get a smooth feel of the new hand sealed upper section
Adding the foam pad that the aftermarket company did not include
with the kit
You have to hand cut the 1/4 inch foam to size
with angle the cut to edges
|
New Z/270 Silver Z28 Camar for Chris Patane
Headliner will be installed with pics showing as we remove the OEM
headliner and replce the seat covers!
Want your Z/28 interior restored so you can enter in a Concours or local Car
Show?
find your interior kit on the net
Also we do basic upholstery labor to install aftermarket kits, seat repairs for
the working car owner!
| |
| |
|
MrStitch ® Auto
Upholstery Svc
|
|
Open
Weekdays - 9am to 4pm
|
Saturdays
- 10am to1pm
|
|
Shop Location - 77 East
21st Ave. San Mateo CA. USA 94403 |
|
Call us at the Shop! 650
572-8818 |
Fax
6505728899@onlinefax.att.com |
|
Contact Us By E-MAIL |
mrstitch@mrstitch.com |
|
|
|
Call or Emai Call For your
Estimate or Appointment to help you!
|
See the new!
www.mrstitch.net website we are working on with new info for 2020
MrStitch installs a
Original Upholstery kit to be just like back in the Day!
for Z/28 CAMARO OWNERS ONLY!
The
mrstitch Z/28 interior stood toe to toe with with to best interiors shown at
many car shows!
See mrstitch at the 2008 Palo Alto Concours D`Elegance at
Stanford
New!
MrStitch Z/28 OEM Upholstery Kit install
See the Car Shows this Z/28 has been to:
The Forty
Second Palo Alto Concours d`Elagance at Stanford University
Sunday, June 22,2008
See owner of 1969 Z/28 John Campbell at the Concours
The 41st annual Palo Alto Concours d'Elegance
www.paconcours.com/ SUNDAY,
JUNE 24, 2007
Car Crazy 12th Annual Car Show & BBQ 2007
|
See the project in
07 we are working on |
with help
from
Auto Metal Svc.com
is painting the car
with ppg materials
for John Campbell owner of the 1969 Camaro
Z /28
The owner of this mean green 1969 OEM Z /28 is doing a
complete restoration using the specs from vintage GM diagrams
and
using the Kits and Trim parts supplied by
StevesCamaroParts.com
|
HEADLINER - Prep
and install Work
when
we removed the old oem headliner material
we found , the Bows and the
old nasty pad needed to be replaced
customer purchased new bows to replace
the old rusty parts and old pad that Jon at Auto Metal Svc removed.
see the new metal surface after Jon at auto metal did the dirty work
removing the old roof pad
this took many hours cleaning the rust and spraying
the new sealer
next new pad is glued to the roof sections and the quarters
Finished Headiner
Parts are cleaned with acid and coated with Sem Rust
Shield
Front bucket seats look great! with the
PUI Covers and
American Cushion foam installed
See the old rusty seat frames we restored start to finish
frames are washed in acid then the broken oem springs were mig welded by
Paul at Auto Metal
Sem Rust Shield is applied to frames and new burlap and
jute felt are then installed
Next we install the PUI seat kit and foam pad American Cushions,
from StevesCamaroParts.com
this assembly from Steves looks great right out of the box !
Rear seat back rest frame and pad restore pictures
WOW! we had to STOP!
the PUI seat
covers have come unsealed on the pleat sections, this looks very bad for the
customer that has a completion date
the front bucket seat kit installed looks nice big thick heat sealed
pleats like the original
the rear set is thin and pleats are not heat sealed
evenly and the covers are doing a popcorn process as each seam lifts
DOOR PANEL Aftermarket Kit for Z/28 Camaro
Install DIY Project Tips
See the pictures of the Camaro Standard Door Panels get the new materials
intergreated using the OEM Steel upper sections
See the finished drivers
standard Z/28 Doorpanel up the page
1st you have to use a
angled tool to bend the original staples OSBORNE TOOL #120 1/2
You have remove the original upper panel and reset the pressed
daggard holes using a angled set of pliers when doing by hand
this means you have to turn the tips up so the pre punched holes
will puncture the new panels giving a tight fit.
After you get
this removed you have to clean the upper metal panels with Solvent
to remove the glue (we use Kent Acrysol)
then use a light acid
that wiil remove the surface rust (Metal Prep)
then spray lite
coat of sealer like (Sem Rust Shield)
You can the align the upper
panel to the aftermarket assembly doorpanel, using the notches and
marks
Next apply glue to the doorpanel base board and the
metal , using a heavy weight hammer to stamp the metal to into the
panel, by hand doing strokes like a roman makes his sword, hard and
even to get a smooth feel of the new hand sealed upper section
Adding the foam pad that the aftermarket company did not include
with the kit
You have to hand cut the 1/4 inch foam to size
with angle the cut to edges
|
New Z/270 Silver Z28 Camar for Chris Patane
Headliner will be installed with pics showing as we remove the OEM
headliner and replce the seat covers!
Want your Z/28 interior restored so you can enter in a Concours or local Car
Show?
find your interior kit on the net
Also we do basic upholstery labor to install aftermarket kits, seat repairs for
the working car owner!
| |
| |
|
MrStitch ® Auto
Upholstery Svc
|
|
Open
Weekdays - 9am to 4pm
|
Saturdays
- 10am to1pm
|
|
Shop Location - 77 East
21st Ave. San Mateo CA. USA 94403 |
|
Call us at the Shop! 650
572-8818 |
Fax
6505728899@onlinefax.att.com |
|
Contact Us By E-MAIL |
mrstitch@mrstitch.com |
|
|
|
Call or Emai Call For your
Estimate or Appointment to help you!
|
See the new!
www.mrstitch.net website we are working on with new info for 2020
| |
| |
|
MrStitch ® Auto
Upholstery Svc
|
|
Open
Weekdays - 9am to 4pm
|
Saturdays
- 10am to1pm
|
|
Shop Location - 77 East
21st Ave. San Mateo CA. USA 94403 |
|
Call us at the Shop! 650
572-8818 |
Fax
6505728899@onlinefax.att.com |
|
Contact Us By E-MAIL |
mrstitch@mrstitch.com |
|
|
|
Call or Emai Call For your
Estimate or Appointment to help you!
|
See the new!
www.mrstitch.net website we are working on with new info for 2020
| |
| |
|
MrStitch ® Auto
Upholstery Svc |
|
Open
Weekdays - 9am to 4pm |
Saturdays
- 10am to1pm |
|
Shop Location - 77 East
21st Ave. San Mateo CA. USA 94403 |
|
Call us at the Shop! 650
572-8818 |
Call for our Cell # for Text and pictures |
|
Contact Us By E-MAIL |
mrstitch@mrstitch.com |
|
|
|
Call or Email Call For
your Estimate or Appointment to help you! |
See the new!
www.mrstitch.net
website we are working on with new info for 2024
|
| |
|
MrStitch ® Auto
Upholstery Svc |
|
Open
Weekdays - 9am to 4pm |
Saturdays
- 10am to1pm |
|
Shop Location - 77 East
21st Ave. San Mateo CA. USA 94403 |
|
Call us at the Shop! 650
572-8818 |
Fax
650 572-8818 |
|
Contact Us By E-MAIL |
mrstitch@mrstitch.com |
|
|
|
Call or Emai Call For your
Estimate or Appointment to help you! |
See the new!
www.mrstitch.net
website we are working on with new info for 2022
| |
|
| |
|
MrStitch ® Auto
Upholstery Svc
|
|
Open
Weekdays - 9am to 4pm
|
Saturdays
- 10am to1pm
|
|
Shop Location - 77 East
21st Ave. San Mateo CA. USA 94403 |
|
Call us at the Shop! 650
572-8818 |
Fax 650
572-8818 |
|
Contact Us By E-MAIL |
mrstitch@mrstitch.com |
|
|
|
Call or Emai Call For your
Estimate or Appointment to help you!
|
See the new!
www.mrstitch.net
website we are working on with new info for 2021
| |
| |
|
MrStitch ® Auto
Upholstery Svc
|
|
Open
Weekdays - 9am to 4pm
|
Saturdays
- 10am to1pm
|
|
Shop Location - 77 East
21st Ave. San Mateo CA. USA 94403 |
|
Call us at the Shop! 650
572-8818 |
Fax 650
572-8818 |
|
Contact Us By E-MAIL |
mrstitch@mrstitch.com |
|
|
|
Call or Emai Call For your
Estimate or Appointment to help you!
|
See the new!
www.mrstitch.net
website we are working on with new info for 2021
| |
| |
|
MrStitch ® Auto
Upholstery Svc
|
|
Open
Weekdays - 9am to 4pm
|
Saturdays
- 10am to1pm
|
|
Shop Location - 77 East
21st Ave. San Mateo CA. USA 94403 |
|
Call us at the Shop! 650
572-8818 |
Fax 650
572-8818 |
|
Contact Us By E-MAIL |
mrstitch@mrstitch.com |
|
|
|
Call or Emai Call For your
Estimate or Appointment to help you!
|
See the new!
www.mrstitch.net
website we are working on with new info for 2021
| |
| |
|
MrStitch ® Auto
Upholstery Svc |
|
Open
Weekdays - 9am to 4pm |
Saturdays
- 10am to1pm |
|
Shop Location - 77 East
21st Ave. San Mateo CA. USA 94403 |
|
Call us at the Shop! 650
572-8818 |
Fax
6505728899@onlinefax.att.com |
|
Contact Us By E-MAIL |
mrstitch@mrstitch.com |
|
|
|
Call or Emai Call For your
Estimate or Appointment to help you! |
See the new!
www.mrstitch.net website we are working on
with new info for 2021
| |
| |
|
MrStitch ® Auto
Upholstery Svc
|
|
Open
Weekdays - 9am to 4pm
|
Saturdays
- 10am to1pm
|
|
Shop Location - 77 East
21st Ave. San Mateo CA. USA 94403 |
|
Call us at the Shop! 650
572-8818 |
Fax
6505728899@onlinefax.att.com |
|
Contact Us By E-MAIL |
mrstitch@mrstitch.com |
|
|
|
Call or Emai Call For your
Estimate or Appointment to help you!
|
See the new!
www.mrstitch.net website we are working on with new info for 2020
MrStitch installs a
Original Upholstery kit to be just like back in the Day!
for Z/28 CAMARO OWNERS ONLY!
The
mrstitch Z/28 interior stood toe to toe with with to best interiors shown at
many car shows!
See mrstitch at the 2008 Palo Alto Concours D`Elegance at
Stanford
New!
MrStitch Z/28 OEM Upholstery Kit install
See the Car Shows this Z/28 has been to:
The Forty
Second Palo Alto Concours d`Elagance at Stanford University
Sunday, June 22,2008
See owner of 1969 Z/28 John Campbell at the Concours
The 41st annual Palo Alto Concours d'Elegance
www.paconcours.com/ SUNDAY,
JUNE 24, 2007
Car Crazy 12th Annual Car Show & BBQ 2007
|
See the project in
07 we are working on |
with help
from
Auto Metal Svc.com
is painting the car
with ppg materials
for John Campbell owner of the 1969 Camaro
Z /28
The owner of this mean green 1969 OEM Z /28 is doing a
complete restoration using the specs from vintage GM diagrams
and
using the Kits and Trim parts supplied by
StevesCamaroParts.com
|
HEADLINER - Prep
and install Work
when
we removed the old oem headliner material
we found , the Bows and the
old nasty pad needed to be replaced
customer purchased new bows to replace
the old rusty parts and old pad that Jon at Auto Metal Svc removed.
see the new metal surface after Jon at auto metal did the dirty work
removing the old roof pad
this took many hours cleaning the rust and spraying
the new sealer
next new pad is glued to the roof sections and the quarters
Finished Headiner
Parts are cleaned with acid and coated with Sem Rust
Shield
Front bucket seats look great! with the
PUI Covers and
American Cushion foam installed
See the old rusty seat frames we restored start to finish
frames are washed in acid then the broken oem springs were mig welded by
Paul at Auto Metal
Sem Rust Shield is applied to frames and new burlap and
jute felt are then installed
Next we install the PUI seat kit and foam pad American Cushions,
from StevesCamaroParts.com
this assembly from Steves looks great right out of the box !
Rear seat back rest frame and pad restore pictures
WOW! we had to STOP!
the PUI seat
covers have come unsealed on the pleat sections, this looks very bad for the
customer that has a completion date
the front bucket seat kit installed looks nice big thick heat sealed
pleats like the original
the rear set is thin and pleats are not heat sealed
evenly and the covers are doing a popcorn process as each seam lifts
DOOR PANEL Aftermarket Kit for Z/28 Camaro
Install DIY Project Tips
See the pictures of the Camaro Standard Door Panels get the new materials
intergreated using the OEM Steel upper sections
See the finished drivers
standard Z/28 Doorpanel up the page
1st you have to use a
angled tool to bend the original staples OSBORNE TOOL #120 1/2
You have remove the original upper panel and reset the pressed
daggard holes using a angled set of pliers when doing by hand
this means you have to turn the tips up so the pre punched holes
will puncture the new panels giving a tight fit.
After you get
this removed you have to clean the upper metal panels with Solvent
to remove the glue (we use Kent Acrysol)
then use a light acid
that wiil remove the surface rust (Metal Prep)
then spray lite
coat of sealer like (Sem Rust Shield)
You can the align the upper
panel to the aftermarket assembly doorpanel, using the notches and
marks
Next apply glue to the doorpanel base board and the
metal , using a heavy weight hammer to stamp the metal to into the
panel, by hand doing strokes like a roman makes his sword, hard and
even to get a smooth feel of the new hand sealed upper section
Adding the foam pad that the aftermarket company did not include
with the kit
You have to hand cut the 1/4 inch foam to size
with angle the cut to edges
|
New Z/270 Silver Z28 Camar for Chris Patane
Headliner will be installed with pics showing as we remove the OEM
headliner and replce the seat covers!
Want your Z/28 interior restored so you can enter in a Concours or local Car
Show?
find your interior kit on the net
Also we do basic upholstery labor to install aftermarket kits, seat repairs for
the working car owner!
| |
| |
|
MrStitch ® Auto
Upholstery Svc
|
|
Open
Weekdays - 9am to 4pm
|
Saturdays
- 10am to1pm
|
|
Shop Location - 77 East
21st Ave. San Mateo CA. USA 94403 |
|
Call us at the Shop! 650
572-8818 |
Fax
6505728899@onlinefax.att.com |
|
Contact Us By E-MAIL |
mrstitch@mrstitch.com |
|
|
|
Call or Emai Call For your
Estimate or Appointment to help you!
|
See the new!
www.mrstitch.net website we are working on with new info for 2020
MrStitch installs a
Original Upholstery kit to be just like back in the Day!
for Z/28 CAMARO OWNERS ONLY!
The
mrstitch Z/28 interior stood toe to toe with with to best interiors shown at
many car shows!
See mrstitch at the 2008 Palo Alto Concours D`Elegance at
Stanford
New!
MrStitch Z/28 OEM Upholstery Kit install
See the Car Shows this Z/28 has been to:
The Forty
Second Palo Alto Concours d`Elagance at Stanford University
Sunday, June 22,2008
See owner of 1969 Z/28 John Campbell at the Concours
The 41st annual Palo Alto Concours d'Elegance
www.paconcours.com/ SUNDAY,
JUNE 24, 2007
Car Crazy 12th Annual Car Show & BBQ 2007
|
See the project in
07 we are working on |
with help
from
Auto Metal Svc.com
is painting the car
with ppg materials
for John Campbell owner of the 1969 Camaro
Z /28
The owner of this mean green 1969 OEM Z /28 is doing a
complete restoration using the specs from vintage GM diagrams
and
using the Kits and Trim parts supplied by
StevesCamaroParts.com
|
HEADLINER - Prep
and install Work
when
we removed the old oem headliner material
we found , the Bows and the
old nasty pad needed to be replaced
customer purchased new bows to replace
the old rusty parts and old pad that Jon at Auto Metal Svc removed.
see the new metal surface after Jon at auto metal did the dirty work
removing the old roof pad
this took many hours cleaning the rust and spraying
the new sealer
next new pad is glued to the roof sections and the quarters
Finished Headiner
Parts are cleaned with acid and coated with Sem Rust
Shield
Front bucket seats look great! with the
PUI Covers and
American Cushion foam installed
See the old rusty seat frames we restored start to finish
frames are washed in acid then the broken oem springs were mig welded by
Paul at Auto Metal
Sem Rust Shield is applied to frames and new burlap and
jute felt are then installed
Next we install the PUI seat kit and foam pad American Cushions,
from StevesCamaroParts.com
this assembly from Steves looks great right out of the box !
Rear seat back rest frame and pad restore pictures
WOW! we had to STOP!
the PUI seat
covers have come unsealed on the pleat sections, this looks very bad for the
customer that has a completion date
the front bucket seat kit installed looks nice big thick heat sealed
pleats like the original
the rear set is thin and pleats are not heat sealed
evenly and the covers are doing a popcorn process as each seam lifts
DOOR PANEL Aftermarket Kit for Z/28 Camaro
Install DIY Project Tips
See the pictures of the Camaro Standard Door Panels get the new materials
intergreated using the OEM Steel upper sections
See the finished drivers
standard Z/28 Doorpanel up the page
1st you have to use a
angled tool to bend the original staples OSBORNE TOOL #120 1/2
You have remove the original upper panel and reset the pressed
daggard holes using a angled set of pliers when doing by hand
this means you have to turn the tips up so the pre punched holes
will puncture the new panels giving a tight fit.
After you get
this removed you have to clean the upper metal panels with Solvent
to remove the glue (we use Kent Acrysol)
then use a light acid
that wiil remove the surface rust (Metal Prep)
then spray lite
coat of sealer like (Sem Rust Shield)
You can the align the upper
panel to the aftermarket assembly doorpanel, using the notches and
marks
Next apply glue to the doorpanel base board and the
metal , using a heavy weight hammer to stamp the metal to into the
panel, by hand doing strokes like a roman makes his sword, hard and
even to get a smooth feel of the new hand sealed upper section
Adding the foam pad that the aftermarket company did not include
with the kit
You have to hand cut the 1/4 inch foam to size
with angle the cut to edges
|
New Z/270 Silver Z28 Camar for Chris Patane
Headliner will be installed with pics showing as we remove the OEM
headliner and replce the seat covers!
Want your Z/28 interior restored so you can enter in a Concours or local Car
Show?
find your interior kit on the net
Also we do basic upholstery labor to install aftermarket kits, seat repairs for
the working car owner!
| |
| |
|
MrStitch ® Auto
Upholstery Svc
|
|
Open
Weekdays - 9am to 4pm
|
Saturdays
- 10am to1pm
|
|
Shop Location - 77 East
21st Ave. San Mateo CA. USA 94403 |
|
Call us at the Shop! 650
572-8818 |
Fax
6505728899@onlinefax.att.com |
|
Contact Us By E-MAIL |
mrstitch@mrstitch.com |
|
|
|
Call or Emai Call For your
Estimate or Appointment to help you!
|
See the new!
www.mrstitch.net website we are working on with new info for 2020
| |
| |
|
MrStitch ® Auto
Upholstery Svc
|
|
Open
Weekdays - 9am to 4pm
|
Saturdays
- 10am to1pm
|
|
Shop Location - 77 East
21st Ave. San Mateo CA. USA 94403 |
|
Call us at the Shop! 650
572-8818 |
Fax
6505728899@onlinefax.att.com |
|
Contact Us By E-MAIL |
mrstitch@mrstitch.com |
|
|
|
Call or Emai Call For your
Estimate or Appointment to help you!
|
See the new!
www.mrstitch.net website we are working on with new info for 2020
| |
| |
MrStitch.com is not a
Politcal website!
MrStitch® is
protected by the USA Patent and Trademark Office ! Any use of mrstitch.com
text and images must be approved by MrStitch!
MrStitch text and
images on the web created and shown is a registered Service and Trademark.
Copyright©1986-2021 MR.STITCH All rights reserved.
|
MrStitch ® Auto
Upholstery Svc |
|
Open
Weekdays - 9am to 4pm |
Saturdays
- 10am to1pm |
|
Shop Location - 77 East
21st Ave. San Mateo CA. USA 94403 |
|
Call us at the Shop! 650
572-8818 |
Call for our Cell # for Text and pictures |
|
Contact Us By E-MAIL |
mrstitch@mrstitch.com |
|
|
|
Call or Email Call For
your Estimate or Appointment to help you! |
See the new!
www.mrstitch.net
website we are working on with new info for 2024
|
| |
|
MrStitch ® Auto
Upholstery Svc |
|
Open
Weekdays - 9am to 4pm |
Saturdays
- 10am to1pm |
|
Shop Location - 77 East
21st Ave. San Mateo CA. USA 94403 |
|
Call us at the Shop! 650
572-8818 |
Fax
650 572-8818 |
|
Contact Us By E-MAIL |
mrstitch@mrstitch.com |
|
|
|
Call or Emai Call For your
Estimate or Appointment to help you! |
See the new!
www.mrstitch.net
website we are working on with new info for 2022
| |
|
| |
|
MrStitch ® Auto
Upholstery Svc
|
|
Open
Weekdays - 9am to 4pm
|
Saturdays
- 10am to1pm
|
|
Shop Location - 77 East
21st Ave. San Mateo CA. USA 94403 |
|
Call us at the Shop! 650
572-8818 |
Fax 650
572-8818 |
|
Contact Us By E-MAIL |
mrstitch@mrstitch.com |
|
|
|
Call or Emai Call For your
Estimate or Appointment to help you!
|
See the new!
www.mrstitch.net
website we are working on with new info for 2021
| |
| |
|
MrStitch ® Auto
Upholstery Svc
|
|
Open
Weekdays - 9am to 4pm
|
Saturdays
- 10am to1pm
|
|
Shop Location - 77 East
21st Ave. San Mateo CA. USA 94403 |
|
Call us at the Shop! 650
572-8818 |
Fax 650
572-8818 |
|
Contact Us By E-MAIL |
mrstitch@mrstitch.com |
|
|
|
Call or Emai Call For your
Estimate or Appointment to help you!
|
See the new!
www.mrstitch.net
website we are working on with new info for 2021
| |
| |
|
MrStitch ® Auto
Upholstery Svc
|
|
Open
Weekdays - 9am to 4pm
|
Saturdays
- 10am to1pm
|
|
Shop Location - 77 East
21st Ave. San Mateo CA. USA 94403 |
|
Call us at the Shop! 650
572-8818 |
Fax 650
572-8818 |
|
Contact Us By E-MAIL |
mrstitch@mrstitch.com |
|
|
|
Call or Emai Call For your
Estimate or Appointment to help you!
|
See the new!
www.mrstitch.net
website we are working on with new info for 2021
| |
| |
|
MrStitch ® Auto
Upholstery Svc |
|
Open
Weekdays - 9am to 4pm |
Saturdays
- 10am to1pm |
|
Shop Location - 77 East
21st Ave. San Mateo CA. USA 94403 |
|
Call us at the Shop! 650
572-8818 |
Fax
6505728899@onlinefax.att.com |
|
Contact Us By E-MAIL |
mrstitch@mrstitch.com |
|
|
|
Call or Emai Call For your
Estimate or Appointment to help you! |
See the new!
www.mrstitch.net website we are working on
with new info for 2021
| |
| |
|
MrStitch ® Auto
Upholstery Svc
|
|
Open
Weekdays - 9am to 4pm
|
Saturdays
- 10am to1pm
|
|
Shop Location - 77 East
21st Ave. San Mateo CA. USA 94403 |
|
Call us at the Shop! 650
572-8818 |
Fax
6505728899@onlinefax.att.com |
|
Contact Us By E-MAIL |
mrstitch@mrstitch.com |
|
|
|
Call or Emai Call For your
Estimate or Appointment to help you!
|
See the new!
www.mrstitch.net website we are working on with new info for 2020
MrStitch installs a
Original Upholstery kit to be just like back in the Day!
for Z/28 CAMARO OWNERS ONLY!
The
mrstitch Z/28 interior stood toe to toe with with to best interiors shown at
many car shows!
See mrstitch at the 2008 Palo Alto Concours D`Elegance at
Stanford
New!
MrStitch Z/28 OEM Upholstery Kit install
See the Car Shows this Z/28 has been to:
The Forty
Second Palo Alto Concours d`Elagance at Stanford University
Sunday, June 22,2008
See owner of 1969 Z/28 John Campbell at the Concours
The 41st annual Palo Alto Concours d'Elegance
www.paconcours.com/ SUNDAY,
JUNE 24, 2007
Car Crazy 12th Annual Car Show & BBQ 2007
|
See the project in
07 we are working on |
with help
from
Auto Metal Svc.com
is painting the car
with ppg materials
for John Campbell owner of the 1969 Camaro
Z /28
The owner of this mean green 1969 OEM Z /28 is doing a
complete restoration using the specs from vintage GM diagrams
and
using the Kits and Trim parts supplied by
StevesCamaroParts.com
|
HEADLINER - Prep
and install Work
when
we removed the old oem headliner material
we found , the Bows and the
old nasty pad needed to be replaced
customer purchased new bows to replace
the old rusty parts and old pad that Jon at Auto Metal Svc removed.
see the new metal surface after Jon at auto metal did the dirty work
removing the old roof pad
this took many hours cleaning the rust and spraying
the new sealer
next new pad is glued to the roof sections and the quarters
Finished Headiner
Parts are cleaned with acid and coated with Sem Rust
Shield
Front bucket seats look great! with the
PUI Covers and
American Cushion foam installed
See the old rusty seat frames we restored start to finish
frames are washed in acid then the broken oem springs were mig welded by
Paul at Auto Metal
Sem Rust Shield is applied to frames and new burlap and
jute felt are then installed
Next we install the PUI seat kit and foam pad American Cushions,
from StevesCamaroParts.com
this assembly from Steves looks great right out of the box !
Rear seat back rest frame and pad restore pictures
WOW! we had to STOP!
the PUI seat
covers have come unsealed on the pleat sections, this looks very bad for the
customer that has a completion date
the front bucket seat kit installed looks nice big thick heat sealed
pleats like the original
the rear set is thin and pleats are not heat sealed
evenly and the covers are doing a popcorn process as each seam lifts
DOOR PANEL Aftermarket Kit for Z/28 Camaro
Install DIY Project Tips
See the pictures of the Camaro Standard Door Panels get the new materials
intergreated using the OEM Steel upper sections
See the finished drivers
standard Z/28 Doorpanel up the page
1st you have to use a
angled tool to bend the original staples OSBORNE TOOL #120 1/2
You have remove the original upper panel and reset the pressed
daggard holes using a angled set of pliers when doing by hand
this means you have to turn the tips up so the pre punched holes
will puncture the new panels giving a tight fit.
After you get
this removed you have to clean the upper metal panels with Solvent
to remove the glue (we use Kent Acrysol)
then use a light acid
that wiil remove the surface rust (Metal Prep)
then spray lite
coat of sealer like (Sem Rust Shield)
You can the align the upper
panel to the aftermarket assembly doorpanel, using the notches and
marks
Next apply glue to the doorpanel base board and the
metal , using a heavy weight hammer to stamp the metal to into the
panel, by hand doing strokes like a roman makes his sword, hard and
even to get a smooth feel of the new hand sealed upper section
Adding the foam pad that the aftermarket company did not include
with the kit
You have to hand cut the 1/4 inch foam to size
with angle the cut to edges
|
New Z/270 Silver Z28 Camar for Chris Patane
Headliner will be installed with pics showing as we remove the OEM
headliner and replce the seat covers!
Want your Z/28 interior restored so you can enter in a Concours or local Car
Show?
find your interior kit on the net
Also we do basic upholstery labor to install aftermarket kits, seat repairs for
the working car owner!
| |
| |
|
MrStitch ® Auto
Upholstery Svc
|
|
Open
Weekdays - 9am to 4pm
|
Saturdays
- 10am to1pm
|
|
Shop Location - 77 East
21st Ave. San Mateo CA. USA 94403 |
|
Call us at the Shop! 650
572-8818 |
Fax
6505728899@onlinefax.att.com |
|
Contact Us By E-MAIL |
mrstitch@mrstitch.com |
|
|
|
Call or Emai Call For your
Estimate or Appointment to help you!
|
See the new!
www.mrstitch.net website we are working on with new info for 2020
MrStitch installs a
Original Upholstery kit to be just like back in the Day!
for Z/28 CAMARO OWNERS ONLY!
The
mrstitch Z/28 interior stood toe to toe with with to best interiors shown at
many car shows!
See mrstitch at the 2008 Palo Alto Concours D`Elegance at
Stanford
New!
MrStitch Z/28 OEM Upholstery Kit install
See the Car Shows this Z/28 has been to:
The Forty
Second Palo Alto Concours d`Elagance at Stanford University
Sunday, June 22,2008
See owner of 1969 Z/28 John Campbell at the Concours
The 41st annual Palo Alto Concours d'Elegance
www.paconcours.com/ SUNDAY,
JUNE 24, 2007
Car Crazy 12th Annual Car Show & BBQ 2007
|
See the project in
07 we are working on |
with help
from
Auto Metal Svc.com
is painting the car
with ppg materials
for John Campbell owner of the 1969 Camaro
Z /28
The owner of this mean green 1969 OEM Z /28 is doing a
complete restoration using the specs from vintage GM diagrams
and
using the Kits and Trim parts supplied by
StevesCamaroParts.com
|
HEADLINER - Prep
and install Work
when
we removed the old oem headliner material
we found , the Bows and the
old nasty pad needed to be replaced
customer purchased new bows to replace
the old rusty parts and old pad that Jon at Auto Metal Svc removed.
see the new metal surface after Jon at auto metal did the dirty work
removing the old roof pad
this took many hours cleaning the rust and spraying
the new sealer
next new pad is glued to the roof sections and the quarters
Finished Headiner
Parts are cleaned with acid and coated with Sem Rust
Shield
Front bucket seats look great! with the
PUI Covers and
American Cushion foam installed
See the old rusty seat frames we restored start to finish
frames are washed in acid then the broken oem springs were mig welded by
Paul at Auto Metal
Sem Rust Shield is applied to frames and new burlap and
jute felt are then installed
Next we install the PUI seat kit and foam pad American Cushions,
from StevesCamaroParts.com
this assembly from Steves looks great right out of the box !
Rear seat back rest frame and pad restore pictures
WOW! we had to STOP!
the PUI seat
covers have come unsealed on the pleat sections, this looks very bad for the
customer that has a completion date
the front bucket seat kit installed looks nice big thick heat sealed
pleats like the original
the rear set is thin and pleats are not heat sealed
evenly and the covers are doing a popcorn process as each seam lifts
DOOR PANEL Aftermarket Kit for Z/28 Camaro
Install DIY Project Tips
See the pictures of the Camaro Standard Door Panels get the new materials
intergreated using the OEM Steel upper sections
See the finished drivers
standard Z/28 Doorpanel up the page
1st you have to use a
angled tool to bend the original staples OSBORNE TOOL #120 1/2
You have remove the original upper panel and reset the pressed
daggard holes using a angled set of pliers when doing by hand
this means you have to turn the tips up so the pre punched holes
will puncture the new panels giving a tight fit.
After you get
this removed you have to clean the upper metal panels with Solvent
to remove the glue (we use Kent Acrysol)
then use a light acid
that wiil remove the surface rust (Metal Prep)
then spray lite
coat of sealer like (Sem Rust Shield)
You can the align the upper
panel to the aftermarket assembly doorpanel, using the notches and
marks
Next apply glue to the doorpanel base board and the
metal , using a heavy weight hammer to stamp the metal to into the
panel, by hand doing strokes like a roman makes his sword, hard and
even to get a smooth feel of the new hand sealed upper section
Adding the foam pad that the aftermarket company did not include
with the kit
You have to hand cut the 1/4 inch foam to size
with angle the cut to edges
|
New Z/270 Silver Z28 Camar for Chris Patane
Headliner will be installed with pics showing as we remove the OEM
headliner and replce the seat covers!
Want your Z/28 interior restored so you can enter in a Concours or local Car
Show?
find your interior kit on the net
Also we do basic upholstery labor to install aftermarket kits, seat repairs for
the working car owner!
| |
| |
|
MrStitch ® Auto
Upholstery Svc
|
|
Open
Weekdays - 9am to 4pm
|
Saturdays
- 10am to1pm
|
|
Shop Location - 77 East
21st Ave. San Mateo CA. USA 94403 |
|
Call us at the Shop! 650
572-8818 |
Fax
6505728899@onlinefax.att.com |
|
Contact Us By E-MAIL |
mrstitch@mrstitch.com |
|
|
|
Call or Emai Call For your
Estimate or Appointment to help you!
|
See the new!
www.mrstitch.net website we are working on with new info for 2020
| |
| |
| | |
After
After
