Welcome to:  MrStitch Gto Upholstery Service

See the before and After pictures of Upholstery kits and inner work done to create OEM and Custom Designs for your GTO


Project 69 GTO The Judge! Seats
GTO 69 Fode Judge photo 00.jpg (101117 bytes) GTO 69 Fode Judge photo 02.jpg (191104 bytes) GTO 69 Fode Judge photo.jpg (309410 bytes)


New!GTO 69 Judge Front Buckets .JPG (2023485 bytes) GTO 69 Judge Front Buckets 0.JPG (3215634 bytes)

See the restoration of the seats with the best! quality made seat kit from
www.legendaryautointeriors.com

plus the new www.American Cushion Ind replacement foam pads!


Old!! GTO 69 Fode old seats 0.JPG (3380236 bytes) GTO 69 Fode old seats .JPG (3220527 bytes)
this is the look of the old worn torn seat upholstery when you start!
But you never know that a shop replaced the pad before and cut costs by just glueing weird layers of pad and not fixing the seat frames with replacement springs just to install covers for previous gto owner.

GTO69 Fode old Seat Foam.JPG (1685104 bytes)  GTO 69 Fode Seat frames Rusty 00.JPG (3967060 bytes)  GTO 69 Fode Seat frames Rusty.JPG (3884150 bytes)  See the frames cleaned and ready for paint GTO 69 Fode Seat frames Acid Cleaned 0.jpg (4167518 bytes) GTO 69 Fode Seat frames Acid Cleaned.jpg (3749626 bytes)
No Problem! at MrStitch we will restore these GTO Bucket Seats like Original  Will show pictures as we go along to finish for customer!


the cushion seat frames coated with Sem Trim Black #39143 GTO 69 Fode Seat frames Painted 00.JPG (2007292 bytes) GTO 69 Fode Seat frames Painted 0.JPG (2116708 bytes) GTO 69 Fode Seat frames Painted.JPG (3353842 bytes)


Backrest seat Old cover and pad removed!
GTO 69 Fode Old backrest frame.jpg (2541895 bytes)  GTO 69 Fode Old backrest frame 0.jpg (3490081 bytes)  GTO 69 Fode Old backrest pad.jpg (2529337 bytes)
See what we found. Previous trim shop did not fix the broken springs, they just crammed in foam pad in the frame!
Thats why the drivers seat back had a bloated look.
We will mig weld the inner springs and wrap with burlap so the frame works properly.    GTO 69 Fode Old backrest Spring 0.jpg (2952593 bytes) GTO 69 Fode Old backrest Spring.jpg (3525045 bytes)


Seat backrest springs welded and ready for light acid wash to remove surface rust then paint
Before GTO 69 Fode Old backrest frames.jpg (3594426 bytes) After GTO 69 Fode New backrest frames.jpg (3797896 bytes) GTO 69 Fode New backrest frames 0.jpg (4006466 bytes)
Backrest  painted GTO 69 Fode Seat frames Painted 01.JPG (1966586 bytes) Next! apply Burlap to frame and edge wire GTO 69 Fode Seat frames Burlap.JPG (2052227 bytes)

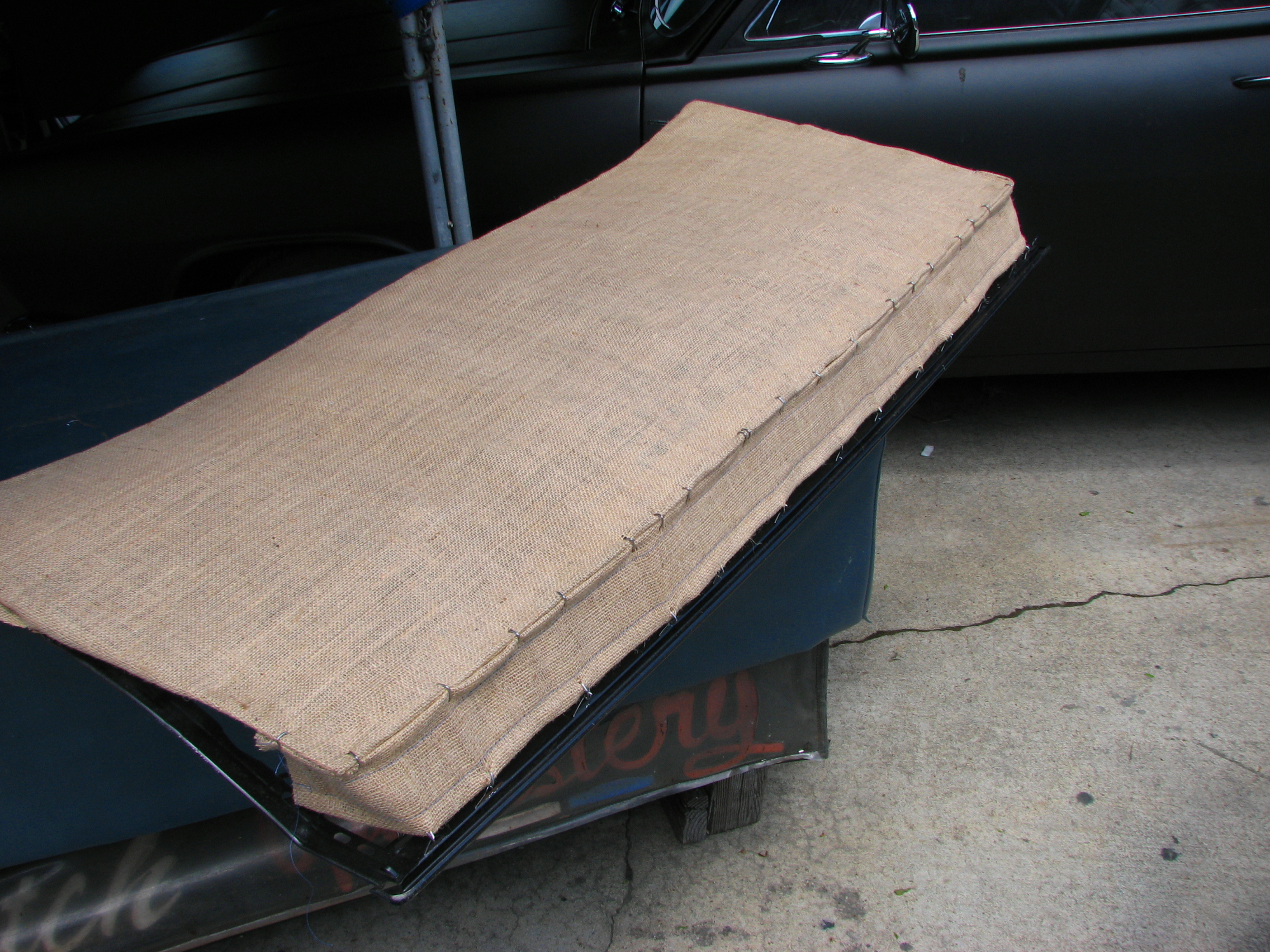

Rear Seat Frame Work! Burlap


Now the amazing American Cushion Foam glued to seat GTO 69 Fode Seat frames Foam.jpg (2428734 bytes)
See the covers installed over foamGTO 69 Fode Seat frames Burlap 0.jpg (3261583 bytes) GTO 69 Fode Seat frames Burlap 00.JPG (1845901 bytes) GTO 69 Fode Judge Backrest Seat.jpg (3278858 bytes) GTO 69 Fode Judge Cushion Seat.JPG (1756834 bytes)
Next refit covers after seeing how evenly the insert wires pull down after hog ringing. use button string to pull inner wires.

See the new installed Legandary upholstery to the first seat GTO 69 Judge Fode Drivers Seat 00.jpg (3620103 bytes) GTO 69 Judge Fode Drivers Seat.jpg (4141335 bytes)

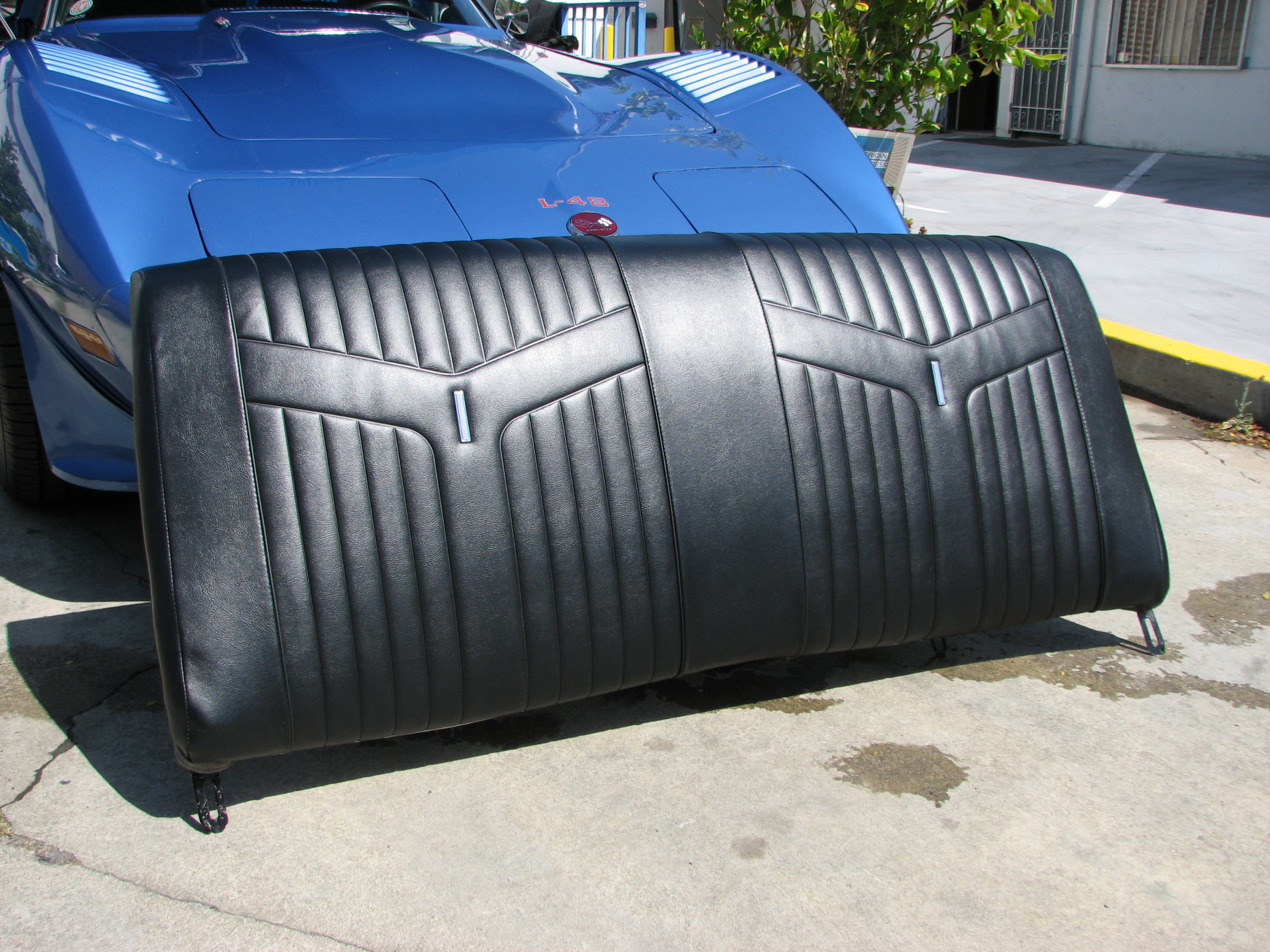

See thr rear seat assembled

See the Vintage pictures

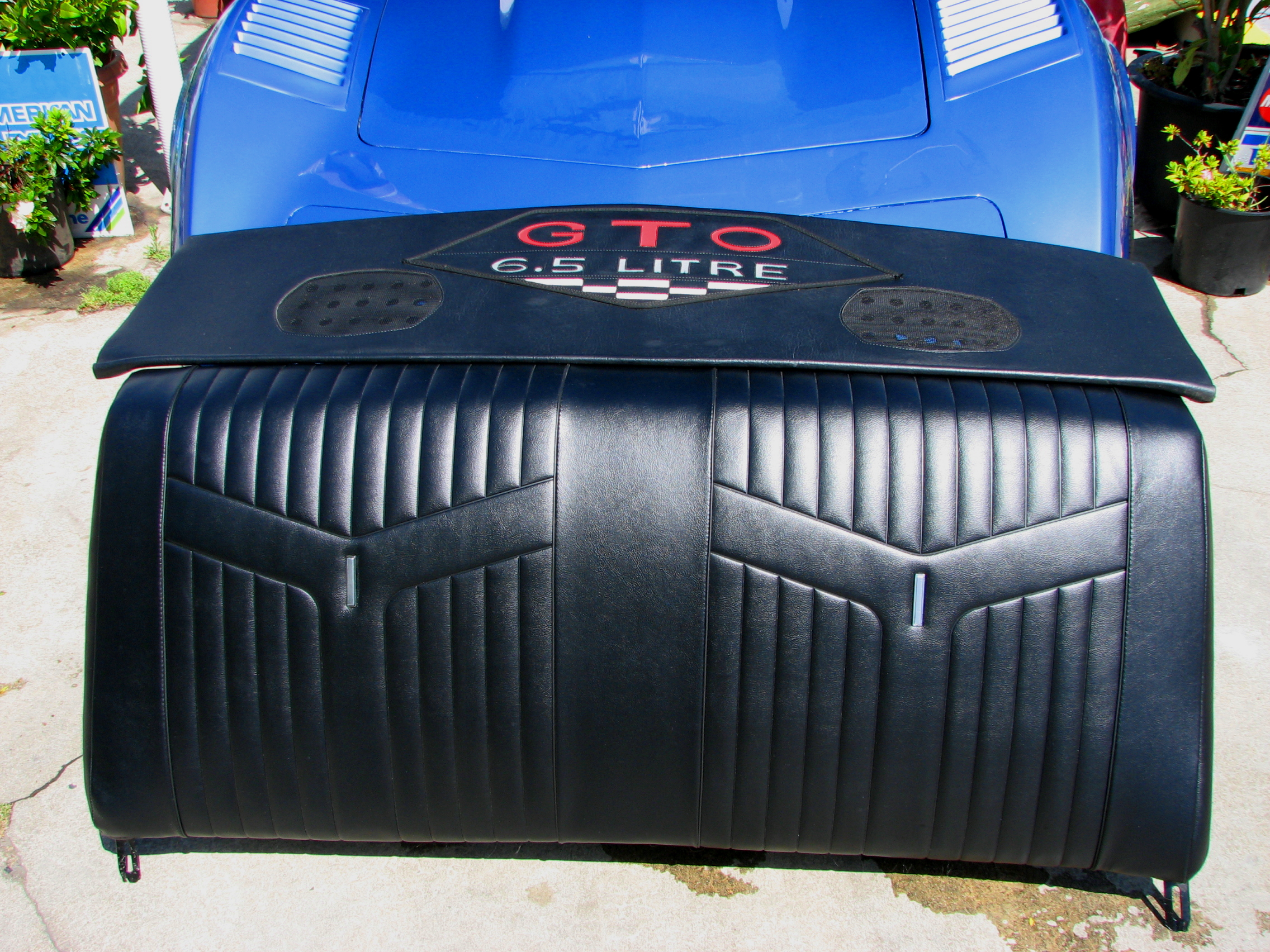

GTO Custom rear shelf.jpg (2397386 bytes)  MrStitch rear shelf GTO Logo
custom MrStitch GTO Bra GTO Custom Bra.jpg (1005062 bytes)
we made 20 years ago! For basic GTO
